SpringBoot + MyBatis-plus + Druid 实现简单增删查改、动态条件查询和分页功能分析

虾米哥 阅读:296 2021-03-31 12:54:28 评论:0

本文主要讲解:SpringBoot集成Mybatis-plus,数据库连接池使用alibaba的druid,实现简单增删查改、动态条件查询和分页功能。

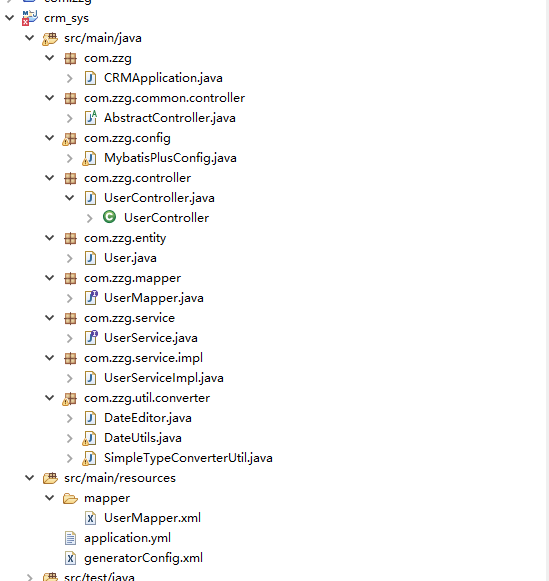

项目整体结构

项目添加相关框架依赖(pom.xml)

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.zzg</groupId>
	<artifactId>crm_sys</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.2.RELEASE</version>
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<!--starter -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>
		<!-- test -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<!--web -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<!--validation -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-validation</artifactId>
		</dependency>
		<!--lombok -->
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
		</dependency>
		<!-- mybatis-plus 集成 -->
		<dependency>
			<groupId>com.baomidou</groupId>
			<artifactId>mybatis-plus-boot-starter</artifactId>
			<version>3.4.1</version>
		</dependency>
		<!-- 数据库连接池druid -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>druid-spring-boot-starter</artifactId>
			<version>1.1.10</version>
		</dependency>
		<!--mysql 驱动程序 -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
		</dependency>
	</dependencies>

	<!--集成mybatis-generator 自动生成组件 -->
	<build>
		<plugins>
			<plugin>
				<groupId>org.mybatis.generator</groupId>
				<artifactId>mybatis-generator-maven-plugin</artifactId>
				<version>1.3.7</version>
				<dependencies>
					<dependency>
						<groupId>mysql</groupId>
						<artifactId>mysql-connector-java</artifactId>
						<version>8.0.12</version>
					</dependency>
					<dependency>
						<groupId>org.mybatis.generator</groupId>
						<artifactId>mybatis-generator-core</artifactId>
						<version>1.3.7</version>
					</dependency>
				</dependencies>
				<executions>
					<execution>
						<id>Generate MyBatis Artifacts</id>
						<phase>package</phase>
						<goals>
							<goal>generate</goal>
						</goals>
					</execution>
				</executions>
				<configuration>
					<!--允许移动生成的文件 -->
					<verbose>true</verbose>
					<!-- 是否覆盖 -->
					<overwrite>true</overwrite>
					<!-- 自动生成的配置 -->
					<configurationFile>src/main/resources/generatorConfig.xml</configurationFile>
				</configuration>
			</plugin>
		</plugins>
	</build>




</project>

项目资源文件配置(application.yml)

server:
  port: 8098
mybatis-plus:
  mapper-locations:classpath:/mapper/*Mapper.xml
  typeAliasesPackage:com.zzg.entity
spring:
  ##数据库连接信息
  datasource:
    url: jdbc:mysql://192.168.1.73:3306/boot-table?serverTimezone=Asia/Shanghai&useSSL=false&allowPublicKeyRetrieval=true&allowMultiQueries=true
    username: root
    password: digipower
    driver-class-name: com.mysql.cj.jdbc.Driver
    ###################以下为druid增加的配置###########################
    type: com.alibaba.druid.pool.DruidDataSource
    # 下面为连接池的补充设置,应用到上面所有数据源中
    # 初始化大小,最小,最大
    initialSize: 5
    minIdle: 5
    maxActive: 20
    # 配置获取连接等待超时的时间
    maxWait: 60000
    # 配置间隔多久才进行一次检测,检测需要关闭的空闲连接,单位是毫秒
    timeBetweenEvictionRunsMillis: 60000
    # 配置一个连接在池中最小生存的时间,单位是毫秒
    minEvictableIdleTimeMillis: 300000
    validationQuery: SELECT 1 FROM DUAL
    testWhileIdle: true
    testOnBorrow: false
    testOnReturn: false
    # 打开PSCache,并且指定每个连接上PSCache的大小
    poolPreparedStatements: true
    maxPoolPreparedStatementPerConnectionSize: 20
    # 配置监控统计拦截的filters,去掉后监控界面sql无法统计,'wall'用于防火墙
    filters: stat,wall,log4j
    # 通过connectProperties属性来打开mergeSql功能;慢SQL记录
    connectionProperties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000
    # 合并多个DruidDataSource的监控数据
    useGlobalDataSourceStat: true
    ###############以上为配置druid添加的配置########################################

项目涉及(entity、mapper、service、serviceImpl 和Controller)

Controller 层定义

package com.zzg.controller;

import java.util.Map;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;

import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.zzg.common.controller.AbstractController;
import com.zzg.entity.User;
import com.zzg.service.UserService;

@Controller
@RequestMapping("/api/user")
public class UserController extends AbstractController<User> {

	@Autowired
	private UserService userService;

	// 增
	@RequestMapping(value = "/insert", method = { RequestMethod.POST }, produces = "application/json;charset=UTF-8")
	@ResponseBody
	public Object insert(@RequestBody User user) {
		return userService.save(user);
	}

	// 改
	@RequestMapping(value = "/update", method = { RequestMethod.POST }, produces = "application/json;charset=UTF-8")
	@ResponseBody
	public Object update(@RequestBody User user) {
		return userService.updateById(user);
	}

	// 删
	@RequestMapping(value = "/delete/{id}", method = { RequestMethod.DELETE })
	@ResponseBody
	public Object delete(@PathVariable("id") Integer id) {
		return userService.removeById(id);
	}

	// 查
	@RequestMapping(value = "/getUserByName", method = { RequestMethod.GET })
	@ResponseBody
	public Object getUserByName(@RequestParam String userName) {
		QueryWrapper<User> query = new QueryWrapper<User>();
		query.like("username", userName);
		return userService.getOne(query);
	}

	// 查
	@RequestMapping(value = "/getId", method = { RequestMethod.GET })
	@ResponseBody
	public Object getId(@RequestParam Integer id) {
		return userService.getById(id);
	}

	// 查
	@RequestMapping(value = "/getPage", method = { RequestMethod.POST })
	@ResponseBody
	public Object getPage(@RequestBody Map<String, Object> parame) {
		Page<User> page = this.initPageBounds(parame);
		return userService.page(page);
	}


}

entity 定义

package com.zzg.entity;

import java.io.Serializable;
import java.util.Date;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;

@SuppressWarnings("serial")
@Data
@TableName("user")
public class User implements Serializable {
	@TableId(value = "id", type = IdType.AUTO)
    private Integer id;

    private String username;

    private String password;

    private String email;

    private String phone;

    private String question;

    private String answer;

    private Integer role;

    private Date createTime;

    private Date updateTime;


}

mapper 定义:

package com.zzg.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.zzg.entity.User;

public interface UserMapper extends BaseMapper<User> {
}

service 和serviceImpl 定义:

package com.zzg.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.zzg.entity.User;

public interface UserService extends IService<User> {
}
package com.zzg.service.impl;

import org.springframework.stereotype.Service;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.zzg.entity.User;
import com.zzg.mapper.UserMapper;
import com.zzg.service.UserService;

@Service
public class UserServiceImpl extends ServiceImpl<UserMapper, User> implements UserService {

}

项目涉及(common、util之转换、程序入口、全局配置对象)

common 之公共抽象Controller

package com.zzg.common.controller;

import java.util.Map;

import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.zzg.util.converter.SimpleTypeConverterUtil;



public abstract class AbstractController<T> {
	public static final String PAGE = "page";

	public static final String LIMIT = "limit";

	/**
	 * 参数分页参数转换校验
	 *
	 * @param param
	 * @return
	 */
	protected Page<T> initPageBounds(Map<String, Object> param) {
		int page = SimpleTypeConverterUtil.convertIfNecessary(param.get(PAGE), int.class);
		int limit = SimpleTypeConverterUtil.convertIfNecessary(param.get(LIMIT), int.class);
		// 页码和页数取消最大限制
		page = (page <= 0) ? 1 : page;
		limit = (limit <= 0) ? 10 : limit;
		return new Page<T>(page, limit);
	}
}

Util之数据类型转换:

package com.zzg.util.converter;

import java.util.Date;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.SimpleTypeConverter;


public class SimpleTypeConverterUtil {
public static final Logger log = LoggerFactory.getLogger(SimpleTypeConverterUtil.class);

	private static final SimpleTypeConverter typeConverterDelegate = new SimpleTypeConverter();
	static{
		typeConverterDelegate.registerCustomEditor(Date.class, new DateEditor());
	}

	/**
	 * @param <T>
	 * @param value  待转换值,一般字符串
	 * @param requiredType 转后类型类对象
	 * @return
	 */
	public static <T> T convertIfNecessary(Object value, Class<T> requiredType) {
		T rs = null;
		try {
			rs = typeConverterDelegate.convertIfNecessary(value, requiredType);
		} catch (Exception e) {
			log.info(e.getMessage());
			if(requiredType == int.class || requiredType == Integer.class){
				rs = (T)Integer.valueOf(0);
			}
		}
		return rs;
	}
}
package com.zzg.util.converter;

import java.lang.management.ManagementFactory;
import java.text.DateFormat;
import java.text.Format;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;


public class DateUtils {
public static final Logger log = LoggerFactory.getLogger(DateUtils.class);

	public static final String YYYY = "yyyy" ;

    public static final String YYYY_MM = "yyyy-MM" ;

    public static final String YYYY_MM_DD = "yyyy-MM-dd" ;

    public static final String YYYYMMDDHHMMSS = "yyyyMMddHHmmss" ;

    public static final String YYYY_MM_DD_HH_MM_SS = "yyyy-MM-dd HH:mm:ss" ;

    private static String[] parsePatterns = {
            YYYY_MM_DD , YYYY_MM_DD_HH_MM_SS , "yyyy-MM-dd HH:mm" , YYYY_MM ,
            "yyyy/MM/dd" , "yyyy/MM/dd HH:mm:ss" , "yyyy/MM/dd HH:mm" , "yyyy/MM" ,
            "yyyy.MM.dd" , "yyyy.MM.dd HH:mm:ss" , "yyyy.MM.dd HH:mm" , "yyyy.MM"};

    /**
     * 获取当前Date型日期
     *
     * @return Date() 当前日期
     */
    public static Date getNowDate() {
        return new Date();
    }

    /**
     * 获取当前日期, 默认格式为yyyy-MM-dd
     *
     * @return String
     */
    public static String getDate() {
        return dateTimeNow(YYYY_MM_DD);
    }

    public static final String getTime() {
        return dateTimeNow(YYYY_MM_DD_HH_MM_SS);
    }

    public static final String dateTimeNow() {
        return dateTimeNow(YYYYMMDDHHMMSS);
    }

    public static final String dateTimeNow(final String format) {
        return parseDateToStr(format, new Date());
    }

    public static final String dateTime(final Date date) {
        return parseDateToStr(YYYY_MM_DD, date);
    }

    public static final String parseDateToStr(final String format, final Date date) {
    	if (date == null) {
            return null;
        }

        Format formatter = new SimpleDateFormat(format);
        return formatter.format(date);
    }

    /**
     * 获取服务器启动时间
     */
    public static Date getServerStartDate() {
        long time = ManagementFactory.getRuntimeMXBean().getStartTime();
        return new Date(time);
    }

    private static final List<DateFormat> formarts = new ArrayList<>(5);
	static {
		formarts.add(new SimpleDateFormat("yyyy-MM"));
		formarts.add(new SimpleDateFormat("yyyy-MM-dd"));
		formarts.add(new SimpleDateFormat("yyyy-MM-dd hh:mm"));
		formarts.add(new SimpleDateFormat("yyyy-MM-dd hh:mm:ss"));
		formarts.add(new SimpleDateFormat("yyyy.MM.dd"));
	}

	public static Date formatDateStr(String source) {
		String value = source.trim();
		if ("".equals(value)) {
			return null;
		}
		try {
			if (source.matches("^\\d{4}-\\d{1,2}$")) {
				return formarts.get(0).parse(source);
			} else if (source.matches("^\\d{4}-\\d{1,2}-\\d{1,2}$")) {
				return formarts.get(1).parse(source);
			} else if (source.matches("^\\d{4}-\\d{1,2}-\\d{1,2} {1}\\d{1,2}:\\d{1,2}$")) {
				return formarts.get(2).parse(source);
			} else if (source.matches("^\\d{4}-\\d{1,2}-\\d{1,2} {1}\\d{1,2}:\\d{1,2}:\\d{1,2}$")) {
				return formarts.get(3).parse(source);
			} else if (source.matches("^\\d{4}.\\d{1,2}.\\d{1,2}$")) {
				return formarts.get(4).parse(source);
			} else {
				throw new IllegalArgumentException("Invalid boolean value '" + source + "'");
			}
		} catch (Exception e) {
			log.warn("DateUtils.formatDateStr error", e);
			return null;
		}
	}

    /**
     * 计算两个时间差
     */
    public static String getDatePoor(Date endDate, Date nowDate) {
        long nd = (long)1000 * 24 * 60 * 60;
        long nh = (long)1000 * 60 * 60;
        long nm = (long)1000 * 60;
        // 获得两个时间的毫秒时间差异
        long diff = endDate.getTime() - nowDate.getTime();
        // 计算差多少天
        long day = diff / nd;
        // 计算差多少小时
        long hour = diff % nd / nh;
        // 计算差多少分钟
        long min = diff % nd % nh / nm;
        // 计算差多少秒//输出结果
        return day + "天" + hour + "小时" + min + "分钟" ;
    }
}
package com.zzg.util.converter;

import java.beans.PropertyEditorSupport;


public class DateEditor extends PropertyEditorSupport {
	@Override
	public void setAsText(String text) throws IllegalArgumentException {
		setValue(DateUtils.formatDateStr(text));
	}
}

程序入口:

package com.zzg;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;


@SpringBootApplication
@MapperScan("com.zzg.mapper")
public class CRMApplication {

	public static void main(String[] args) {
		// TODO Auto-generated method stub
		SpringApplication.run(CRMApplication.class, args);
		System.out.println("============= SpringBoot CRM Project Start Success =============");
	}

}

全局配置对象

package com.zzg.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.baomidou.mybatisplus.extension.plugins.PaginationInterceptor;

@Configuration
public class MybatisPlusConfig {
	/**
     * 分页插件
     */
    @Bean
    public PaginationInterceptor paginationInterceptor() {
        PaginationInterceptor page = new PaginationInterceptor();
        //设置方言类型
        page.setDialectType("mysql");
        return page;
    }
}

项目初始化SQL

CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '用户表id',
  `username` varchar(50) NOT NULL COMMENT '用户名',
  `password` varchar(50) NOT NULL COMMENT '用户密码,MD5加密',
  `email` varchar(50) DEFAULT NULL,
  `phone` varchar(20) DEFAULT NULL,
  `question` varchar(100) DEFAULT NULL COMMENT '找回密码问题',
  `answer` varchar(100) DEFAULT NULL COMMENT '找回密码答案',
  `role` int(4) NOT NULL COMMENT '角色0-管理员,1-普通用户',
  `create_time` datetime NOT NULL COMMENT '创建时间',
  `update_time` datetime NOT NULL COMMENT '最后一次更新时间',
  PRIMARY KEY (`id`),
  UNIQUE KEY `user_name_unique` (`username`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=22 DEFAULT CHARSET=utf8;
SET FOREIGN_KEY_CHECKS = 1;

INSERT INTO `user`(`id`, `username`, `password`, `email`, `phone`, `question`, `answer`, `role`, `create_time`, `update_time`) VALUES (1, 'admin', '432D38237BD939443EC5D48E24FD3B1A', 'admin@admin.com', '13800138000', '问题', '答案', 1, '2016-11-06 16:56:45', '2017-04-04 19:27:36');

技术文档:

MyBatis-plus 官网

github 代码地址:https://github.com/zhouzhiwengang/crm_sys.git

声明

1.本站遵循行业规范,任何转载的稿件都会明确标注作者和来源;2.本站的原创文章,请转载时务必注明文章作者和来源,不尊重原创的行为我们将追究责任;3.作者投稿可能会经我们编辑修改或补充。

发表评论
搜索
KIKK导航

KIKK导航

排行榜
关注我们

一个IT知识分享的公众号
