SpringCloud 商城系统搭建之Feign分析

java哥 阅读:184 2021-03-31 13:18:51 评论:0

Spring Cloud 服务调用方式

Spring Cloud有两种服务调用方式,一种是Ribbon + RestTemplate,另一种是feign。在这一篇文章首先讲解下基于Feign。

Feign简介

Feign是一个声明式的伪Http客户端,它使得写Http客户端变得更简单。使用Feign,只需要创建一个接口并注解。它具有可插拔的注解特性,可使用Feign 注解和JAX-RS注解。Feign支持可插拔的编码器和解码器。Feign默认集成了Ribbon,并和Eureka结合,默认实现了负载均衡的效果。

简而言之:

  • Feign 采用的是基于接口的注解
  • Feign 整合了ribbon,具有负载均衡的能力
  • 整合了Hystrix,具有熔断的能力

前提

本文是基于SpringCloud 商城系统搭建之eureka

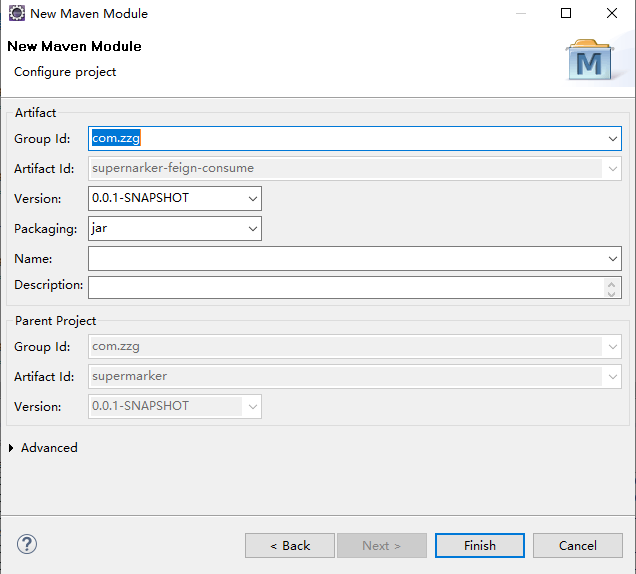

创建supermarker 项目的子项目(supermarker-feign-consume),并在pom.xml 添加相关依赖.

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>com.zzg</groupId>
    <artifactId>supermarker</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>
  <artifactId>supermarker-feign-consume</artifactId>

  <dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
		</dependency>
		<!--feign  -->
		 <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
		<!--srping-boot-actuator -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-actuator</artifactId>
		</dependency>
		<!--lombok -->
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
		</dependency>
	</dependencies>
</project>

Feign消费者配置

[email protected]s注解:开启Feign的功能

package com.zzg;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

@SpringBootApplication
@EnableEurekaClient
@EnableFeignClients
public class EurekaFeignConsumeApplication {

	public static void main(String[] args) {
		// TODO Auto-generated method stub
		SpringApplication.run(EurekaFeignConsumeApplication.class, args);
	}

}

2、打开fFeign消费者的application.properties,添加如下配置

server.port=8085
spring.application.name=fegin
#
eureka.client.register-with-eureka=false
# 和eureka服务器通讯的URL
eureka.client.service-url.defaultZone=http://localhost:8081/eureka/
eureka.instance.instance-id=consumer-fegin

#spring-boot-actuator配置
#开放所有的web Endpoints
management.endpoints.web.exposure.include=*

3、定义一个feign接口,通过@ FeignClient(“服务名”),来指定调用哪个服务。

package com.zzg.inter;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;

import com.zzg.entity.User;

@FeignClient(value = "provider")
public interface FeignServiceInter {


	@RequestMapping(value = "/user",method = RequestMethod.GET)
    public User findById(@RequestParam(value = "id") Integer id);

}

注意:服务名来源于生产者的spring.application.name 属性值,也可以通过eurake 注册中心找到

4、调用生产者,通过Feign 定义的接口调用

package com.zzg.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import com.zzg.entity.User;
import com.zzg.inter.FeignServiceInter;

@RestController
public class UserController {
	@Autowired
	private FeignServiceInter feignServiceInter;

	@GetMapping("/user")
	public User findById(@RequestParam(value = "id") Integer id) {
		return feignServiceInter.findById(id);
	}
}

补全实体对象User 定义:

package com.zzg.entity;

import java.util.Date;

import lombok.Getter;
import lombok.Setter;

@Getter
@Setter
public class User {
private Integer useId;

	private String useName;

	private String useSex;

	private Integer useAge;

	private String useIdNo;

	private String usePhoneNum;

	private String useEmail;

	private Date createTime;

	private Date modifyTime;

	private String useState;
}

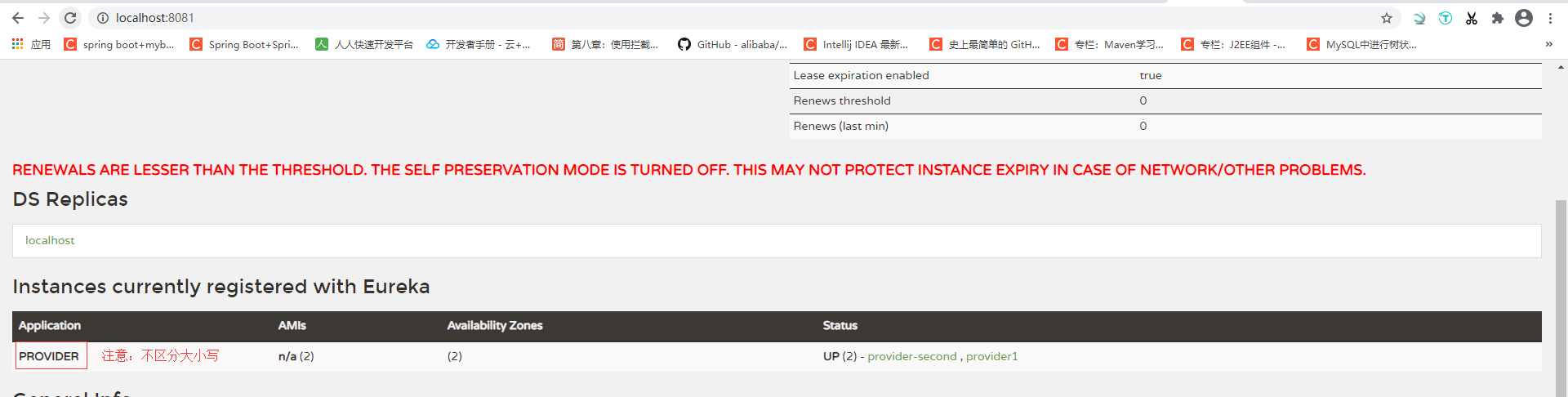

5、启动EurekaFeignConsumeApplication,浏览器访问http://localhost:8085/user?id=3,出现如下界面证明基于Feign的消费者创建成功

备注:修改两个生产者功能接口

supermarker-provider

package com.zzg.controller;

import java.util.ArrayList;
import java.util.List;

import javax.persistence.criteria.CriteriaBuilder;
import javax.persistence.criteria.CriteriaQuery;
import javax.persistence.criteria.Predicate;
import javax.persistence.criteria.Root;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.data.jpa.domain.Specification;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import com.zzg.dao.UserRepository;
import com.zzg.entity.User;

@RestController
public class UserController {
	@Autowired
	private UserRepository userRepository;


	@Value("${server.port}")
	private int port;

	@GetMapping("/user")
    public User findById(@RequestParam(value = "id") Integer id) {
		System.out.println("---------------provider端口被调用--------------" + port);

        return userRepository.findOne(new Specification<User>() {

			@Override
			public Predicate toPredicate(Root<User> root, CriteriaQuery<?> query, CriteriaBuilder criteriaBuilder) {
				// TODO Auto-generated method stub
				 List<Predicate> predicates = new ArrayList<Predicate>();
	             // 用户编号
	             predicates.add(criteriaBuilder.equal(root.<Integer> get("useId"), id));

				return query.where(predicates.toArray(new Predicate[predicates.size()])).getRestriction();
			}
		}).orElse(null);
    }

}

supermarker-provider-second

package com.zzg.controller;

import java.util.ArrayList;
import java.util.List;

import javax.persistence.criteria.CriteriaBuilder;
import javax.persistence.criteria.CriteriaQuery;
import javax.persistence.criteria.Predicate;
import javax.persistence.criteria.Root;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.data.jpa.domain.Specification;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import com.zzg.dao.UserRepository;
import com.zzg.entity.User;

@RestController
public class UserController {
	@Autowired
	private UserRepository userRepository;

	@Value("${server.port}")
	private int port;

	@GetMapping("/user")
    public User findById(@RequestParam(value = "id") Integer id) {
		System.out.println("---------------provider-second端口被调用--------------" + port);

        return userRepository.findOne(new Specification<User>() {

			@Override
			public Predicate toPredicate(Root<User> root, CriteriaQuery<?> query, CriteriaBuilder criteriaBuilder) {
				// TODO Auto-generated method stub
				 List<Predicate> predicates = new ArrayList<Predicate>();
	             // 用户编号
	             predicates.add(criteriaBuilder.equal(root.<Integer> get("useId"), id));

				return query.where(predicates.toArray(new Predicate[predicates.size()])).getRestriction();
			}
		}).orElse(null);
    }

}
