SpringBoot +MyBatis +Oracle + Druid 实现数据库连接池功能分析

无情 阅读:261 2021-03-31 13:29:09 评论:0

SpringBoot 项目之pom.xml 文件依赖

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.zzg</groupId>
	<artifactId>migrate</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.5.18.RELEASE</version>
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<encoding>UTF-8</encoding>
		<java.version>1.8</java.version>
		<commons-lang.version>2.6</commons-lang.version>
		<commons-codec.version>1.10</commons-codec.version>
		<commons-lang3.version>3.9</commons-lang3.version>
		<commons-net.version>3.6</commons-net.version>
		<commons-io.version>2.6</commons-io.version>
		<commons-collections.version>3.2.1</commons-collections.version>
		<commons-text.version>1.8</commons-text.version>
		<oracle.version>1.0</oracle.version>
		<mybatis-spring-boot-starter.version>1.3.2</mybatis-spring-boot-starter.version>
		<com.alibaba.druid.version>1.1.10</com.alibaba.druid.version>
	</properties>

	<dependencies>
		<!--web 模块依赖 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<!--web 单元测试 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<!-- apache common 模块 -->
		<!--commons-lang3 工具包 -->
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
			<version>${commons-lang3.version}</version>
		</dependency>
		<!--commons-codec 加密工具包 -->
		<dependency>
			<groupId>commons-codec</groupId>
			<artifactId>commons-codec</artifactId>
			<version>${commons-codec.version}</version>
		</dependency>
		<!--commons-net 网络工具包 -->
		<dependency>
			<groupId>commons-net</groupId>
			<artifactId>commons-net</artifactId>
			<version>${commons-net.version}</version>
		</dependency>
		<!--common-io 工具包 -->
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>${commons-io.version}</version>
		</dependency>
		<!--common-collection 工具包 -->
		<dependency>
			<groupId>commons-collections</groupId>
			<artifactId>commons-collections</artifactId>
			<version>${commons-collections.version}</version>
		</dependency>
		<!-- common-text 工具包 -->
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-text</artifactId>
			<version>${commons-text.version}</version>
		</dependency>
		<!-- springboot整合mybatis -->
		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>${mybatis-spring-boot-starter.version}</version>
		</dependency>
		<!-- oracle驱动 -->
		<dependency>
 			<groupId>com.oracle</groupId>
  			<artifactId>ojdbc6</artifactId>
  			<version>${oracle.version}</version>
		</dependency>
		<!-- alibaba druid 数据库连接池  -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>druid-spring-boot-starter</artifactId>
			<version>${com.alibaba.druid.version}</version>
		</dependency>
		<!-- PageHelp  -->
         <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>1.2.5</version>
        </dependency>
        <!-- 集成Servlet-api 模块  -->
        <dependency>
		   <groupId>javax.servlet</groupId>
		   <artifactId>servlet-api</artifactId>
		   <version>2.5</version>
		   <scope>provided</scope>
		</dependency>
	</dependencies>

</project>

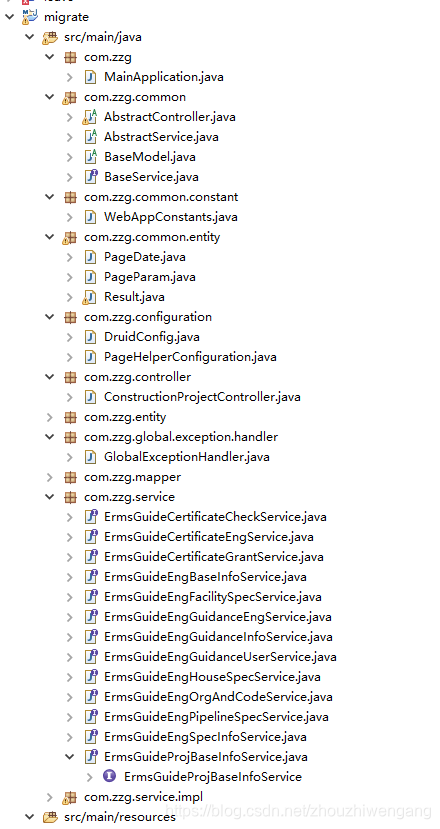

SpringBoot项目整体结构图:

实现AliBaBa Druid 数据库连接池详细步骤

步骤一:pom.xml 文件添加如下配置:

<!-- alibaba druid 数据库连接池  -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>druid-spring-boot-starter</artifactId>
			<version>${com.alibaba.druid.version}</version>
		</dependency>

步骤二:在application.properties 配置文件中,配置Druid 数据库连接池相关配置,我的配置如下:

# 数据库指定第三方数据库连接池
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource

# Druid 配置
# 初始化时建立物理连接的个数
spring.datasource.druid.initial-size=5
# 最大连接池数量
spring.datasource.druid.max-active=30
# 最小连接池数量
spring.datasource.druid.min-idle=5
# 获取连接时最大等待时间,单位毫秒
spring.datasource.druid.max-wait=60000
# 配置间隔多久才进行一次检测,检测需要关闭的空闲连接,单位是毫秒
spring.datasource.druid.time-between-eviction-runs-millis=60000
# 连接保持空闲而不被驱逐的最小时间
spring.datasource.druid.min-evictable-idle-time-millis=300000
# 用来检测连接是否有效的sql,要求是一个查询语句
spring.datasource.druid.validation-query=SELECT 1 FROM DUAL
# 建议配置为true,不影响性能,并且保证安全性。申请连接的时候检测,如果空闲时间大于timeBetweenEvictionRunsMillis,执行validationQuery检测连接是否有效。
spring.datasource.druid.test-while-idle=true
# 申请连接时执行validationQuery检测连接是否有效,做了这个配置会降低性能。
spring.datasource.druid.test-on-borrow=false
# 归还连接时执行validationQuery检测连接是否有效,做了这个配置会降低性能。
spring.datasource.druid.test-on-return=false
# 是否缓存preparedStatement,也就是PSCache。PSCache对支持游标的数据库性能提升巨大,比如说oracle。在mysql下建议关闭。
spring.datasource.druid.pool-prepared-statements=true
# 要启用PSCache,必须配置大于0,当大于0时,poolPreparedStatements自动触发修改为true。
spring.datasource.druid.max-pool-prepared-statement-per-connection-size=50
# 配置监控统计拦截的filters,去掉后监控界面sql无法统计
#spring.datasource.druid.filters=stat,wall
# 通过connectProperties属性来打开mergeSql功能;慢SQL记录
spring.datasource.druid.connection-properties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500
# 合并多个DruidDataSource的监控数据
spring.datasource.druid.use-global-data-source-stat=true
# 配置sql 注入方式
spring.datasource.druid.filters=stat,log4j

说明:重点注意spring.datasource.type=com.alibaba.druid.pool.DruidDataSource 指定第三方数据库连接池,否则使用SpringBoot 默认数据库连接池Hick**

步骤三:配置AliBaBa Druid 后台管理界面访问,通过定义Druid 配置对象实现,实现如下截图:

package com.zzg.configuration;

import java.util.HashMap;
import java.util.Map;

import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
/**
 * 配置Druid 管理平台
 * @author zzg
 *
 */
@Configuration
public class DruidConfig {
	@Bean
    public ServletRegistrationBean druidServletRegistrationBean() {
        ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean();
        servletRegistrationBean.setServlet(new StatViewServlet());
        servletRegistrationBean.addUrlMappings("/druid/*");
        servletRegistrationBean.addInitParameter("allow", "");
        servletRegistrationBean.addInitParameter("deny", "");
        servletRegistrationBean.addInitParameter("loginUsername", "admin");
        servletRegistrationBean.addInitParameter("loginPassword", "admin");
        return servletRegistrationBean;
    }

    /**
     * 注册DruidFilter拦截
     *
     * @return
     */
    @Bean
    public FilterRegistrationBean duridFilterRegistrationBean() {
        FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean();
        filterRegistrationBean.setFilter(new WebStatFilter());
        Map<String, String> initParams = new HashMap<String, String>();
        //设置忽略请求
        initParams.put("exclusions", "*.js,*.gif,*.jpg,*.bmp,*.png,*.css,*.ico,/druid/*");
        filterRegistrationBean.setInitParameters(initParams);
        filterRegistrationBean.addUrlPatterns("/*");
        return filterRegistrationBean;
    }

}

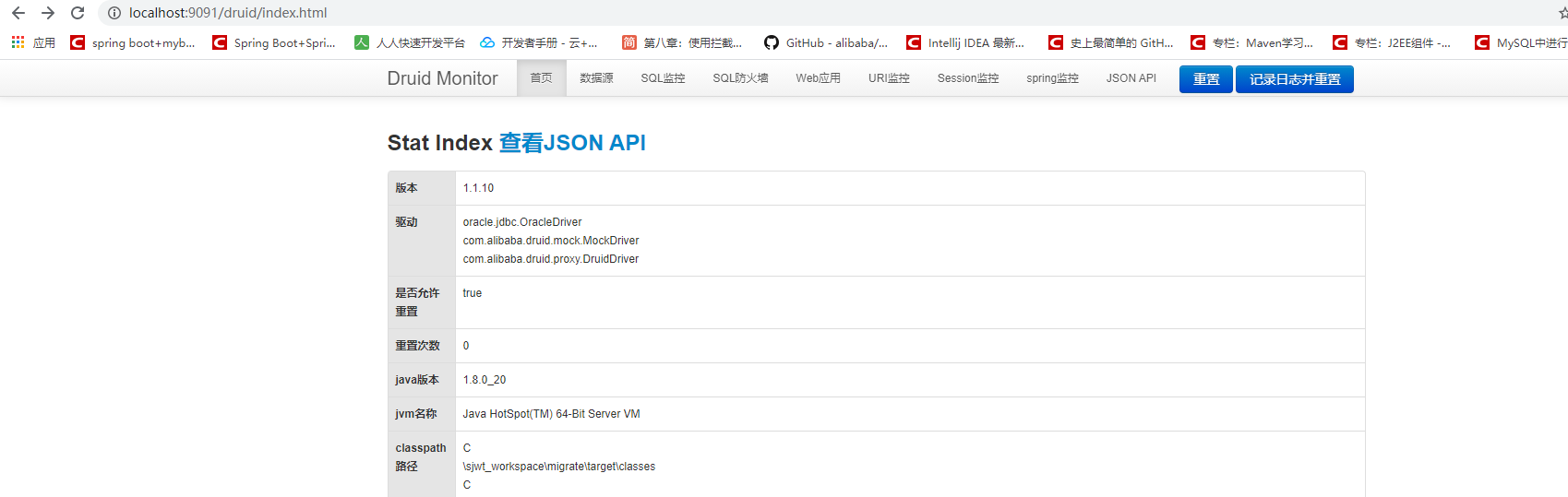

效果截图:
