springboot.2.x 与Spring 集成activiti 的区别分析

java哥 阅读:233 2021-03-31 16:56:06 评论:0

springboot 2.x 集成activiti 6.0 ,通过activiti-spring-boot-start-basic-*.jar 完成SpringProcessEngineConfiguration.java(流程引擎配置参数) 、ProcessEngine(流程引擎).java 、RepositoryService(部署对象实例化).java、RuntimeService(运行对象实例化).java、TaskService(运行对象实例化).java、HistoryService(历史任务对象实例化).java、FormService( 表单对象实例化).java 。

相关说明类如下:

org.activiti.spring.boot.ActivitiProperties.java =springboot 关于 activiti 的配置参数

org.activiti.spring.boot.DataSourceProcessEngineAutoConfiguration、DataSourceProcessEngineConfiguration=等待DataSourceAutoConfiguration.class加载完毕,自动注入DataSource数据源 和 PlatformTransactionManager事务管理器。

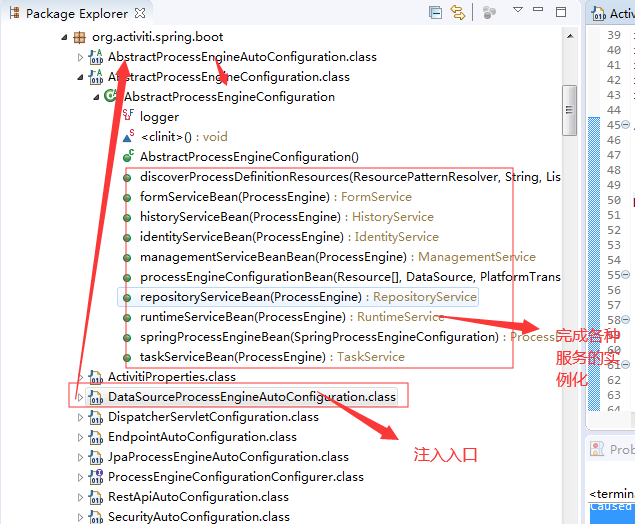

相关流程如下截图:

如果是spring 集成activiti 就需要添加如下代码:

package com.zzg.activiti.config;

import javax.sql.DataSource;

import org.activiti.engine.FormService;
import org.activiti.engine.HistoryService;
import org.activiti.engine.ProcessEngine;
import org.activiti.engine.RepositoryService;
import org.activiti.engine.RuntimeService;
import org.activiti.engine.TaskService;
import org.activiti.spring.ProcessEngineFactoryBean;
import org.activiti.spring.SpringProcessEngineConfiguration;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.transaction.PlatformTransactionManager;
/**
 * activiti 流程配置
 * @author zzg
 *
 */
@Configuration
public class ActivitiConfig {

	// 日志管理
	private Logger logger = LoggerFactory.getLogger(ActivitiConfig.class);


	@Autowired
	private DataSource dataSource;

	@Autowired
	private PlatformTransactionManager transactionManager;

	/**
	 * activiti 处理引擎配置参数实列化对象
	 * @return
	 */
	@Bean
	public SpringProcessEngineConfiguration processEngineConfig(){
		SpringProcessEngineConfiguration processEngineConfiguration = new SpringProcessEngineConfiguration();
		// 数据源设置
		processEngineConfiguration.setDataSource(dataSource);
		// 事务管理器
		processEngineConfiguration.setTransactionManager(transactionManager);
		return processEngineConfiguration;
	}

	/**
	 * activiti 处理引擎实列化对象
	 * @return
	 */
	@Bean
	public ProcessEngine processEngine(){
		ProcessEngine processEngine= null;
		ProcessEngineFactoryBean factory = new ProcessEngineFactoryBean();
		factory.setProcessEngineConfiguration(processEngineConfig());
		try {
			processEngine = factory.getObject();
		} catch (Exception e) {
			// TODO Auto-generated catch block
			logger.error(e.getMessage());
			return null;
		}
		return processEngine;
	}
	/**
	 * activiti 部署对象实例化
	 */
	@Bean
	public RepositoryService getRepository(){
		return processEngine().getRepositoryService();
	}

	/**
	 * activiti 运行对象实例化
	 */
	@Bean
	public RuntimeService getRuntime(){
		return processEngine().getRuntimeService();
	}

	/**
	 * activiti 任务对象实例化
	 */
	@Bean
	public TaskService getTask(){
		return processEngine().getTaskService();
	}

	/**
	 * activiti 历史任务对象实例化
	 * @return
	 */
	@Bean
	public HistoryService getHistory(){
		return processEngine().getHistoryService();
	}

	/**
	 * activiti 表单对象实例化
	 * @return
	 */
	@Bean
	public FormService getForm(){
		return processEngine().getFormService();
	}





}

功能流程上无太多区别,只是一个是自动注入另一种方式是硬编码。
