SpringBoot2.x 集成Activiti6.0分析

访客 阅读:161 2021-03-31 16:56:23 评论:0

任务要求:集成Activiti6.0 流程引擎开发环境。

核心依赖pom文件如下:


	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.1.RELEASE</version>
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
		<mybatis-spring-boot-starter.version>1.3.2</mybatis-spring-boot-starter.version>
		<mysql-connector-java.version>8.0.11</mysql-connector-java.version>
		<com.alibaba.druid.version>1.1.9</com.alibaba.druid.version>
		<commons-lang.version>2.6</commons-lang.version>
		<commons-codec.version>1.10</commons-codec.version>
		<commons-lang3.version>3.8.1</commons-lang3.version>
		<commons-net.version>3.6</commons-net.version>
		<commons-io.version>2.6</commons-io.version>
		<commons-collections.version>3.2.1</commons-collections.version>
		<common-fileupload.version>1.3.1</common-fileupload.version>
		<fastjson.version>1.2.48</fastjson.version>
		<jasperreports.version>6.10.0</jasperreports.version>
	</properties>


	<dependencies>
		<!-- SpringWeb模块 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<!--springboot 集成测试框架 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>


		<!--lombok插件 -->
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>${lombok.version}</version>
			<scope>provided</scope>
		</dependency>


		<!-- mysql 连接 -->
		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>${mybatis-spring-boot-starter.version}</version>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>${mysql-connector-java.version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>druid-spring-boot-starter</artifactId>
			<version>${com.alibaba.druid.version}</version>
		</dependency>
		<!-- 分页控件 -->
		<dependency>
			<groupId>com.github.pagehelper</groupId>
			<artifactId>pagehelper</artifactId>
			<version>4.1.6</version>
		</dependency>

		<!--common-lang 常用工具包 -->
		<dependency>
			<groupId>commons-lang</groupId>
			<artifactId>commons-lang</artifactId>
			<version>${commons-lang.version}</version>
		</dependency>
		<!--commons-lang3 工具包 -->
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
			<version>${commons-lang3.version}</version>
		</dependency>

		<!--commons-codec 加密工具包 -->
		<dependency>
			<groupId>commons-codec</groupId>
			<artifactId>commons-codec</artifactId>
			<version>${commons-codec.version}</version>
		</dependency>
		<!--commons-net 网络工具包 -->
		<dependency>
			<groupId>commons-net</groupId>
			<artifactId>commons-net</artifactId>
			<version>${commons-net.version}</version>
		</dependency>
		<!--common-io 工具包 -->
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>${commons-io.version}</version>
		</dependency>
		<!--common-collection 工具包 -->
		<dependency>
			<groupId>commons-collections</groupId>
			<artifactId>commons-collections</artifactId>
			<version>${commons-collections.version}</version>
		</dependency>
		<!--common-fileupload 工具包 -->
		<dependency>
			<groupId>commons-fileupload</groupId>
			<artifactId>commons-fileupload</artifactId>
			<version>${common-fileupload.version}</version>
		</dependency>

		<!-- Swagger2 -->
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger2</artifactId>
			<version>2.7.0</version>
		</dependency>
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger-ui</artifactId>
			<version>2.7.0</version>
		</dependency>

		<!-- fastjson -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>fastjson</artifactId>
			<version>${fastjson.version}</version>
		</dependency>

		<!-- 集成activiti6.0 -->
		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-spring-boot-starter-basic</artifactId>
			<version>6.0.0</version>
		</dependency>



	</dependencies>

配置实例化对象:

package com.zzg.activiti.config;

import java.util.HashMap;
import java.util.Map;

import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
/**
 * druid 监控配置
 * @author zzg
 *
 */
@Configuration
public class DruidConfig {
	 	@Bean
	    public ServletRegistrationBean druidServletRegistrationBean() {
	        ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean();
	        servletRegistrationBean.setServlet(new StatViewServlet());
	        servletRegistrationBean.addUrlMappings("/druid/*");
	        servletRegistrationBean.addInitParameter("allow", "");
	        servletRegistrationBean.addInitParameter("deny", "");
	        servletRegistrationBean.addInitParameter("loginUsername", "admin");
	        servletRegistrationBean.addInitParameter("loginPassword", "admin");
	        return servletRegistrationBean;
	    }

	    /**
	     * 注册DruidFilter拦截
	     *
	     * @return
	     */
	    @Bean
	    public FilterRegistrationBean duridFilterRegistrationBean() {
	        FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean();
	        filterRegistrationBean.setFilter(new WebStatFilter());
	        Map<String, String> initParams = new HashMap<String, String>();
	        //设置忽略请求
	        initParams.put("exclusions", "*.js,*.gif,*.jpg,*.bmp,*.png,*.css,*.ico,/druid/*");
	        filterRegistrationBean.setInitParameters(initParams);
	        filterRegistrationBean.addUrlPatterns("/*");
	        return filterRegistrationBean;
	    }
}
package com.zzg.activiti.config;

import java.util.Properties;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.github.pagehelper.PageHelper;

/**
 * mybatis 配置对象
 * @author zzg
 *
 */
@Configuration
public class MyBatisConfig {
	/**
	 * 分页对象实列化
	 * @return
	 */
	@Bean
	public PageHelper pageHelper() {
		PageHelper pageHelper = new PageHelper();
		Properties p = new Properties();
		p.setProperty("offsetAsPageNum", "true");
		p.setProperty("rowBoundsWithCount", "true");
		p.setProperty("reasonable", "true");
		p.setProperty("dialect", "mysql");
		pageHelper.setProperties(p);
		return pageHelper;
	}
}
package com.zzg.activiti.config;

import java.util.ArrayList;
import java.util.List;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import io.swagger.annotations.ApiOperation;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.service.Parameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class SwaggerConfig {
	@Bean
	public Docket buildDocket() {

		ParameterBuilder tokenPar = new ParameterBuilder();
		List<Parameter> pars = new ArrayList<Parameter>();
		tokenPar.name("X-CSRF-TOKEN").description("令牌").modelRef(new ModelRef("string")).parameterType("header")
				.required(false).build();
		pars.add(tokenPar.build());

		return new Docket(DocumentationType.SWAGGER_2).select()
				.apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class)).paths(PathSelectors.any())
				.build().globalOperationParameters(pars).apiInfo(buildApiInf());
	}

	private ApiInfo buildApiInf() {
		return new ApiInfoBuilder().title("****").termsOfServiceUrl("http://www.baidu.cn/")
				.description("API接口")
				.contact(new Contact("baidu", "http://www.baidu.cn/", "[email protected]"))
				.version("2.0").build();

	}
}

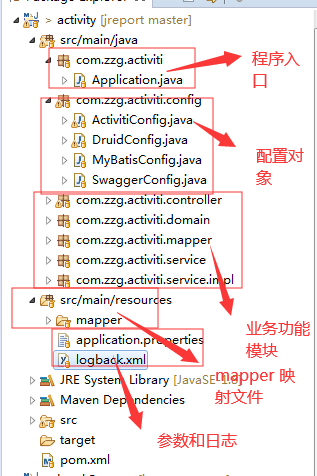

业务逻辑实体对象(model、Mapper、service、serviceImpl、Controller)

applicaion.properties 配置文件

# æå®æå¡ç«¯å£
server.port=7090
# æå®æå¡ å称
# server.context-path=/jreport
#mybatis xml æ件éç½®
mybatis.mapper-locations=classpath*:mapper/activiti/*Mapper.xml
mybatis.type-aliases-package=com.zzg.batch.domain
# MyBatis mysql8 éç½®
spring.datasource.url=jdbc:mysql://192.168.1.**:3306/boot-security?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true&allowMultiQueries=true&nullCatalogMeansCurrent=true
spring.datasource.username=root
spring.datasource.password=***
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
# Druid éç½®
# åå§åæ¶å»ºç«ç©çè¿æ¥çä¸ªæ°
spring.datasource.druid.initial-size=5
# æ大è¿æ¥æ± æ°é
spring.datasource.druid.max-active=30
# æå°è¿æ¥æ± æ°é
spring.datasource.druid.min-idle=5
# è·åè¿æ¥æ¶æ大ç­å¾æ¶é´ï¼åä½æ¯«ç§
spring.datasource.druid.max-wait=60000
# éç½®é´éå¤ä¹æè¿è¡ä¸æ¬¡æ£æµï¼æ£æµéè¦å³é­ç空é²è¿æ¥ï¼åä½æ¯æ¯«ç§
spring.datasource.druid.time-between-eviction-runs-millis=60000
# è¿æ¥ä¿æ空é²èä¸è¢«é©±éçæå°æ¶é´
spring.datasource.druid.min-evictable-idle-time-millis=300000
# ç¨æ¥æ£æµè¿æ¥æ¯å¦ææçsqlï¼è¦æ±æ¯ä¸ä¸ªæ¥è¯¢è¯­å¥
spring.datasource.druid.validation-query=SELECT 1 FROM DUAL
# 建议é置为trueï¼ä¸å½±åæ§è½ï¼å¹¶ä¸ä¿è¯å®å¨æ§ãç³è¯·è¿æ¥çæ¶åæ£æµï¼å¦æ空é²æ¶é´å¤§äºtimeBetweenEvictionRunsMillisï¼æ§è¡validationQueryæ£æµè¿æ¥æ¯å¦ææã
spring.datasource.druid.test-while-idle=true
# ç³è¯·è¿æ¥æ¶æ§è¡validationQueryæ£æµè¿æ¥æ¯å¦ææï¼åäºè¿ä¸ªéç½®ä¼éä½æ§è½ã
spring.datasource.druid.test-on-borrow=false
# å½è¿è¿æ¥æ¶æ§è¡validationQueryæ£æµè¿æ¥æ¯å¦ææï¼åäºè¿ä¸ªéç½®ä¼éä½æ§è½ã
spring.datasource.druid.test-on-return=false
# æ¯å¦ç¼å­preparedStatementï¼ä¹å°±æ¯PSCacheãPSCache对æ¯æ游æ çæ°æ®åºæ§è½æå巨大ï¼æ¯å¦è¯´oracleãå¨mysqlä¸å»ºè®®å³é­ã
spring.datasource.druid.pool-prepared-statements=true
# è¦å¯ç¨PSCacheï¼å¿é¡»é置大äº0ï¼å½å¤§äº0æ¶ï¼poolPreparedStatementsèªå¨è§¦åä¿®æ¹ä¸ºtrueã
spring.datasource.druid.max-pool-prepared-statement-per-connection-size=50
# éç½®çæ§ç»è®¡æ¦æªçfiltersï¼å»æåçæ§çé¢sqlæ æ³ç»è®¡
#spring.datasource.druid.filters=stat,wall
# éè¿connectPropertieså±æ§æ¥æå¼mergeSqlåè½ï¼æ¢SQLè®°å½
spring.datasource.druid.connection-properties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500
# å并å¤ä¸ªDruidDataSourceççæ§æ°æ®
spring.datasource.druid.use-global-data-source-stat=true
# éç½®sql 注å¥æ¹å¼
spring.datasource.druid.filters=stat
# æ¥å¿æ件éç½®
logging.config=classpath:logback.xml

# activiti æµç¨å¼æéç½®
spring.activiti.database-schema-update=true
spring.activiti.check-process-definitions=false

logback.xml 配置文件

<?xml version="1.0" encoding="UTF-8"?>

<!-- 从高到地低 OFF 、 FATAL 、 ERROR 、 WARN 、 INFO 、 DEBUG 、 TRACE 、 ALL -->
<!-- 日志输出规则  根据当前ROOT 级别,日志输出时,级别高于root默认的级别时  会输出 -->
<!-- 以下  每个配置的 filter 是过滤掉输出文件里面,会出现高级别文件,依然出现低级别的日志信息,通过filter 过滤只记录本级别的日志-->


<!-- 属性描述 scan:性设置为true时,配置文件如果发生改变,将会被重新加载,默认值为true scanPeriod:设置监测配置文件是否有修改的时间间隔,如果没有给出时间单位,
默认单位是毫秒。当scan为true时,此属性生效。默认的时间间隔为1分钟。
    debug:当此属性设置为true时,将打印出logback内部日志信息,实时查看logback运行状态。默认值为false。 -->
<configuration scan="true" scanPeriod="60 seconds" debug="false">
    <!-- 定义日志文件 输入位置 -->
    <property name="log_dir" value="/logs/system-provider" />
    <!-- 日志最大的历史 30天 -->
    <property name="maxHistory" value="30"/>


    <!-- ConsoleAppender 控制台输出日志 -->
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <!-- 对日志进行格式化 -->
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger -%msg%n</pattern>
        </encoder>
    </appender>


    <!-- ERROR级别日志 -->
    <!-- 滚动记录文件,先将日志记录到指定文件,当符合某个条件时,将日志记录到其他文件 RollingFileAppender-->
    <appender name="ERROR" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <!-- 过滤器,只记录WARN级别的日志 -->
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>ERROR</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <!-- 最常用的滚动策略,它根据时间来制定滚动策略.既负责滚动也负责出发滚动 -->
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <!--日志输出位置  可相对、和绝对路径 -->
            <fileNamePattern>${log_dir}/%d{yyyy-MM-dd}/neo4j-error-log.log</fileNamePattern>
            <!-- 可选节点,控制保留的归档文件的最大数量,超出数量就删除旧文件假设设置每个月滚动,且<maxHistory>是6,
            则只保存最近6个月的文件,删除之前的旧文件。注意,删除旧文件是,那些为了归档而创建的目录也会被删除-->
            <maxHistory>${maxHistory}</maxHistory>
        </rollingPolicy>

        <!-- 按照固定窗口模式生成日志文件,当文件大于20MB时,生成新的日志文件。窗口大小是1到3,当保存了3个归档文件后,将覆盖最早的日志。
        <rollingPolicy class="ch.qos.logback.core.rolling.FixedWindowRollingPolicy">
          <fileNamePattern>${log_dir}/%d{yyyy-MM-dd}/.log.zip</fileNamePattern>
          <minIndex>1</minIndex>
          <maxIndex>3</maxIndex>
        </rollingPolicy>   -->
        <!-- 查看当前活动文件的大小,如果超过指定大小会告知RollingFileAppender 触发当前活动文件滚动
        <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
            <maxFileSize>5MB</maxFileSize>
        </triggeringPolicy>   -->

        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger - %msg%n</pattern>
        </encoder>
    </appender>


    <!-- WARN级别日志 appender -->
    <appender name="WARN" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <!-- 过滤器,只记录WARN级别的日志 -->
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>WARN</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${log_dir}/%d{yyyy-MM-dd}/neo4j-warn-log.log
            </fileNamePattern>
            <maxHistory>${maxHistory}</maxHistory>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger - %msg%n</pattern>
        </encoder>
    </appender>


    <!-- INFO级别日志 appender -->
    <appender name="INFO" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <!-- 过滤器,只记录INFO级别的日志 -->
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>INFO</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${log_dir}/%d{yyyy-MM-dd}/neo4j-info-log.log
            </fileNamePattern>
            <maxHistory>${maxHistory}</maxHistory>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger - %msg%n</pattern>
        </encoder>
    </appender>


    <!-- DEBUG级别日志 appender -->
    <appender name="DEBUG" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>DEBUG</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${log_dir}/%d{yyyy-MM-dd}/neo4j-debug-log.log
            </fileNamePattern>
            <maxHistory>${maxHistory}</maxHistory>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger - %msg%n</pattern>
        </encoder>
    </appender>

    <logger name="java.sql.PreparedStatement" value="DEBUG" />
    <logger name="java.sql.Connection" value="DEBUG" />
    <logger name="java.sql.Statement" value="DEBUG" />
    <logger name="com.ibatis" value="DEBUG" />
    <logger name="com.ibatis.common.jdbc.SimpleDataSource" value="DEBUG" />
    <logger name="com.ibatis.common.jdbc.ScriptRunner" level="DEBUG"/>
    <logger name="com.ibatis.sqlmap.engine.impl.SqlMapClientDelegate" value="DEBUG" />
    <logger name="org.springframework.web" level="DEBUG"/>
    <logger name="com.zzg.jreport" level="DEBUG"/>


    <!-- root级别   DEBUG -->
    <root level="ERROR">
        <!-- 控制台输出 -->
        <appender-ref ref="STDOUT" />
        <!-- 文件输出 -->
        <appender-ref ref="ERROR" />
        <appender-ref ref="INFO" />
        <appender-ref ref="WARN" />
        <appender-ref ref="DEBUG" />
    </root>
</configuration>

项目整体结构图:

启动Application,检查数据库是否创建Activiti 关联23张表。

声明

1.本站遵循行业规范,任何转载的稿件都会明确标注作者和来源;2.本站的原创文章,请转载时务必注明文章作者和来源,不尊重原创的行为我们将追究责任;3.作者投稿可能会经我们编辑修改或补充。

发表评论
搜索
排行榜
关注我们

一个IT知识分享的公众号
