SpringBoot 集成MyBatis Generator 代码生成器分析

符号 阅读:242 2021-03-31 18:16:10 评论:0

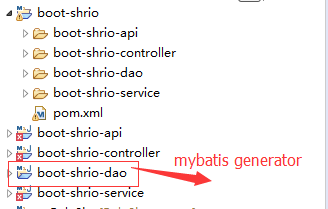

项目结构:

boot-shrio 根目录pom.xml 文件

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.zzg</groupId>
  <artifactId>boot-shrio</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>pom</packaging>

  <parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.2.RELEASE</version>
	</parent>

	<properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <encoding>UTF-8</encoding>
        <java.version>1.8</java.version>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
    </properties>

	<dependencies>
		<!--web 模块依赖 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<!--web 热部署 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-devtools</artifactId>
			<optional>true</optional>
		</dependency>
		<!--web 单元测试 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<!--common-lang 常用工具包 -->
		<dependency>
			<groupId>commons-lang</groupId>
			<artifactId>commons-lang</artifactId>
			<version>2.6</version>
		</dependency>
		<!--commons-codec 加密工具包 -->
		<dependency>
			<groupId>commons-codec</groupId>
			<artifactId>commons-codec</artifactId>
			<version>1.10</version>
		</dependency>
	</dependencies>
  <modules>
  	<module>boot-shrio-api</module>
  	<module>boot-shrio-dao</module>
  	<module>boot-shrio-service</module>
  	<module>boot-shrio-controller</module>
  </modules>
</project>

boot-shrio-dao集成mybatis-generator 插件,pom.xml 文件如下:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>com.zzg</groupId>
    <artifactId>boot-shrio</artifactId>
    <version>0.0.1-SNAPSHOT</version>
  </parent>
  <artifactId>boot-shrio-dao</artifactId>

  <!--集成mybatis-generator 自动生成组件  -->
  <build>
		<plugins>
			<plugin>
				<groupId>org.mybatis.generator</groupId>
				<artifactId>mybatis-generator-maven-plugin</artifactId>
				<version>1.3.7</version>
				<dependencies>
					<dependency>
						<groupId>mysql</groupId>
						<artifactId>mysql-connector-java</artifactId>
						<version>8.0.12</version>
					</dependency>
					<dependency>
						<groupId>org.mybatis.generator</groupId>
						<artifactId>mybatis-generator-core</artifactId>
						<version>1.3.7</version>
					</dependency>
				</dependencies>
				<executions>
					<execution>
						<id>Generate MyBatis Artifacts</id>
						<phase>package</phase>
						<goals>
							<goal>generate</goal>
						</goals>
					</execution>
				</executions>
				<configuration>
					<!--允许移动生成的文件 -->
					<verbose>true</verbose>
					<!-- 是否覆盖 -->
					<overwrite>true</overwrite>
					<!-- 自动生成的配置 -->
					<configurationFile>src/main/resources/generatorConfig.xml</configurationFile>
				</configuration>
			</plugin>
		</plugins>
	</build>
</project>

在boot-shrio-dao 资源文件路径(src/main/resource)下配置generatorConfig.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>

    <!--defaultModelType="flat" 大数据字段,不分表 -->
    <context id="Mysql" targetRuntime="MyBatis3Simple" defaultModelType="flat">
        <property name="autoDelimitKeywords" value="true" />
        <property name="beginningDelimiter" value="`" />
        <property name="endingDelimiter" value="`" />
        <property name="javaFileEncoding" value="utf-8" />
        <plugin type="org.mybatis.generator.plugins.SerializablePlugin" />
        <plugin type="org.mybatis.generator.plugins.ToStringPlugin" />

        <!-- 注释 -->
        <commentGenerator >
            <property name="suppressAllComments" value="true"/><!-- 是否取消注释 -->
            <property name="suppressDate" value="true" /> <!-- 是否生成注释代时间戳-->
        </commentGenerator>

        <!--数据库链接地址账号密码-->
        <jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
                        connectionURL="jdbc:mysql://127.0.0.1:3306/boot_shrio?serverTimezone=UTC"
                        userId="root"
                        password="123456">
        </jdbcConnection>

        <!-- 类型转换 -->
        <javaTypeResolver>
            <!-- 是否使用bigDecimal, false可自动转化以下类型(Long, Integer, Short, etc.) -->
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!--生成Model类存放位置-->
        <javaModelGenerator targetPackage="com.zzg.entity" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>

        <!-- 生成mapxml文件 -->
        <sqlMapGenerator targetPackage="mapper" targetProject="src/main/resources" >
            <property name="enableSubPackages" value="false" />
        </sqlMapGenerator>

        <!-- 生成mapxml对应client,也就是接口dao -->
        <javaClientGenerator targetPackage="com.zzg.mapper" targetProject="src/main/java" type="XMLMAPPER" >
            <property name="enableSubPackages" value="false" />
        </javaClientGenerator>

        <table tableName="u_permission" domainObjectName="Permission" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false">
            <generatedKey column="id" sqlStatement="Mysql" identity="true" />
        </table>
        <table tableName="u_role" domainObjectName="Role" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false">
            <generatedKey column="id" sqlStatement="Mysql" identity="true" />
        </table>
         <table tableName="u_role_permission" domainObjectName="RolePermission" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false">
        </table>
        <table tableName="u_user" domainObjectName="User" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false">
            <generatedKey column="id" sqlStatement="Mysql" identity="true" />
        </table>
         <table tableName="u_user_role" domainObjectName="UserRole" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false">
        </table>
    </context>
</generatorConfiguration>

执行mybatis-generator相关指令,生成文件

(1)如果是在eclipse 中,选择项目或者pom.xml文件,

鼠标单击右键先择Run AS——>Maven Build… ——>

在Goals框中输入:mybatis-generator:generate

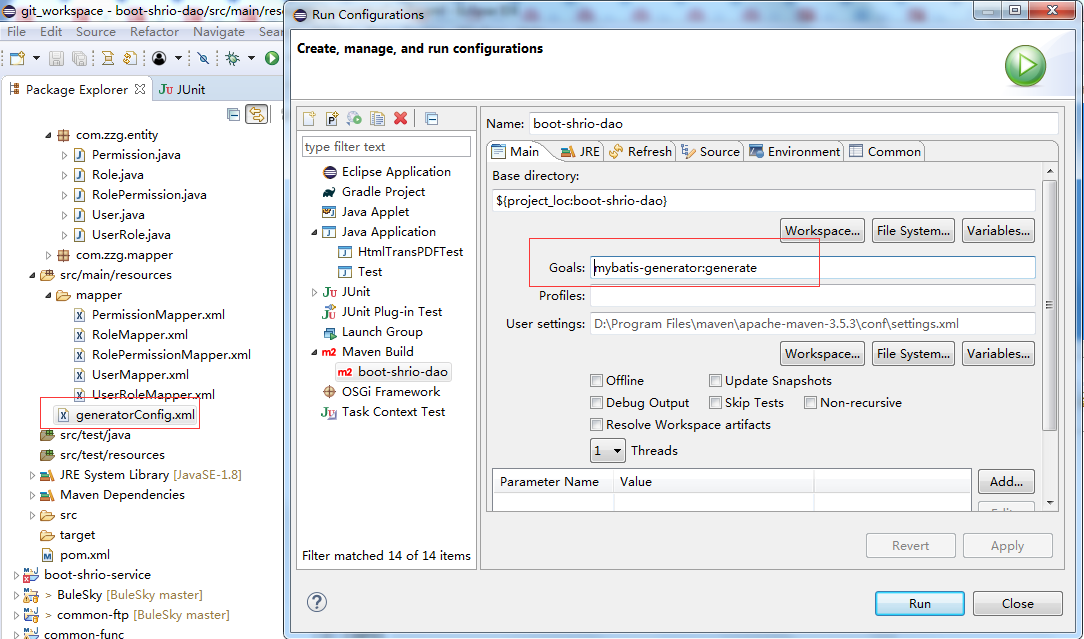

截图如下:

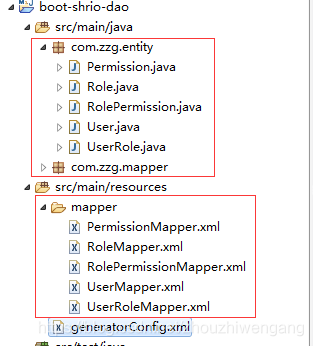

代码生成效果截图:
