ActiveMQ简单的HelloWorld实例分析

符号 阅读:285 2021-03-31 22:11:45 评论:0

在上一篇博文JMS 规范简介,我们介绍了JMS的两种消息模型:点对点和发布订阅模型,以及消息被消费的两个方式:同步和异步,JMS编程模型的对象,最后说了JMS的优点。这篇博文我们主要介绍ActiveMQ是如何实现JMS规范中的两种消费模式。

1、ActiviteMQ消息有3中形式

JMS 公共

点对点域

发布/订阅域

ConnectionFactory

QueueConnectionFactory

TopicConnectionFactory

Connection

QueueConnection

TopicConnection

Destination

Queue

Topic

Session

QueueSession

TopicSession

MessageProducer

QueueSender

TopicPublisher

MessageConsumer

QueueReceiver

TopicSubscriber

(1)、点对点方式(point-to-point)

点对点的消息发送方式主要建立在 Message Queue,Sender,reciever上,Message Queue 存贮消息,Sneder 发送消息,receive接收消息.具体点就是Sender Client发送Message Queue ,而 receiver Cliernt从Queue中接收消息和"发送消息已接受"到Quere,确认消息接收。消息发送客户端与接收客户端没有时间上的依赖,发送客户端可以在任何时刻发送信息到Queue,而不需要知道接收客户端是不是在运行

(2)、发布/订阅 方式(publish/subscriber Messaging)

发布/订阅方式用于多接收客户端的方式.作为发布订阅的方式,可能存在多个接收客户端,并且接收端客户端与发送客户端存在时间上的依赖。一个接收端只能接收他创建以后发送客户端发送的信息。作为subscriber ,在接收消息时有两种方法,destination的receive方法,和实现message listener 接口的onMessage 方法。

2、ActiviteMQ接收和发送消息基本流程


发送消息的基本步骤:

(1)、创建连接使用的工厂类JMS ConnectionFactory

(2)、使用管理对象JMS ConnectionFactory建立连接Connection,并启动

(3)、使用连接Connection 建立会话Session

(4)、使用会话Session和管理对象Destination创建消息生产者MessageSender

(5)、使用消息生产者MessageSender发送消息



消息接收者从JMS接受消息的步骤

(1)、创建连接使用的工厂类JMS ConnectionFactory

(2)、使用管理对象JMS ConnectionFactory建立连接Connection,并启动

(3)、使用连接Connection 建立会话Session

(4)、使用会话Session和管理对象Destination创建消息接收者MessageReceiver

(5)、使用消息接收者MessageReceiver接受消息,需要用setMessageListener将MessageListener接口绑定到MessageReceiver消息接收者必须实现了MessageListener接口,需要定义onMessage事件方法。

搭建开发环境

  • 建立项目

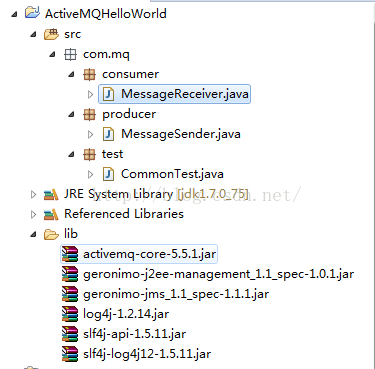

    我们只需要建立一个java项目就可以了,导入jar包,项目截图:
  •
1、JMS方式发送接收消息:

JMS发送者

package com.mq.producer;

import javax.jms.Connection;
import javax.jms.ConnectionFactory;
import javax.jms.DeliveryMode;
import javax.jms.Destination;
import javax.jms.MessageProducer;
import javax.jms.Session;
import javax.jms.TextMessage;

import org.apache.activemq.ActiveMQConnection;
import org.apache.activemq.ActiveMQConnectionFactory;



public class MessageSender {
	// 发送次数
	public static final int SEND_NUM = 5;
	// tcp 地址
	public static final String BROKER_URL = "tcp://localhost:61616";
	// 目标,在ActiveMQ管理员控制台创建 http://localhost:8161/admin/queues.jsp
	public static final String DESTINATION = "mq.queue";

	/**
	 * 发送消息
	 *
	 * @param session
	 * @param producer
	 * @throws Exception
	 */
	public static void sendMessage(Session session, MessageProducer producer) throws Exception {
		for (int i = 0; i < SEND_NUM; i++) {
			String message = "发送消息第" + (i + 1) + "条";
			TextMessage text = session.createTextMessage(message);

			System.out.println(message);
			producer.send(text);
		}
	}

	public static void run() throws Exception {

		Connection connection = null;
		Session session = null;
		try {
			// 创建链接工厂
			ConnectionFactory factory = new ActiveMQConnectionFactory(ActiveMQConnection.DEFAULT_USER,
					ActiveMQConnection.DEFAULT_PASSWORD, BROKER_URL);
			// 通过工厂创建一个连接
			connection = factory.createConnection();
			// 启动连接
			connection.start();
			// 创建一个session会话
			session = connection.createSession(Boolean.TRUE, Session.AUTO_ACKNOWLEDGE);
			// 创建一个消息队列
			Destination destination = session.createQueue(DESTINATION);
			// 创建消息制作者
			MessageProducer producer = session.createProducer(destination);
			// 设置持久化模式
			producer.setDeliveryMode(DeliveryMode.NON_PERSISTENT);
			sendMessage(session, producer);
			// 提交会话
			session.commit();

		} catch (Exception e) {
			throw e;
		} finally {
			// 关闭释放资源
			if (session != null) {
				session.close();
			}
			if (connection != null) {
				connection.close();
			}
		}
	}





}
JMS 接收者
package com.mq.consumer;

import javax.jms.Connection;
import javax.jms.ConnectionFactory;
import javax.jms.Destination;
import javax.jms.Message;
import javax.jms.MessageConsumer;
import javax.jms.Session;
import javax.jms.TextMessage;

import org.apache.activemq.ActiveMQConnection;
import org.apache.activemq.ActiveMQConnectionFactory;

public class MessageReceiver {
	// tcp 地址
	public static final String BROKER_URL = "tcp://localhost:61616";
	// 目标,在ActiveMQ管理员控制台创建 http://localhost:8161/admin/queues.jsp
	public static final String DESTINATION = "mq.queue";

	public static void run() throws Exception {

		Connection connection = null;
		Session session = null;
		try {
			// 创建链接工厂
			ConnectionFactory factory = new ActiveMQConnectionFactory(ActiveMQConnection.DEFAULT_USER,
					ActiveMQConnection.DEFAULT_PASSWORD, BROKER_URL);
			// 通过工厂创建一个连接
			connection = factory.createConnection();
			// 启动连接
			connection.start();
			// 创建一个session会话
			session = connection.createSession(Boolean.TRUE, Session.AUTO_ACKNOWLEDGE);
			// 创建一个消息队列
			Destination destination = session.createQueue(DESTINATION);
			// 创建消息制作者
			MessageConsumer consumer = session.createConsumer(destination);

			while (true) {
				// 接收数据的时间(等待) 100 ms
				Message message = consumer.receive(1000 * 100);

				TextMessage text = (TextMessage) message;
				if (text != null) {
					System.out.println("接收:" + text.getText());
				} else {
					break;
				}
			}

			// 提交会话
			session.commit();

		} catch (Exception e) {
			throw e;
		} finally {
			// 关闭释放资源
			if (session != null) {
				session.close();
			}
			if (connection != null) {
				connection.close();
			}
		}
	}
}
JMS 测试工具类
package com.mq.test;

import com.mq.consumer.MessageReceiver;
import com.mq.producer.MessageSender;

public class CommonTest {

	public static void main(String[] args) {
		// TODO Auto-generated method stub
		try {
			MessageSender.run();
			Thread.sleep(10*1000);
			MessageReceiver.run();
		} catch (Exception e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}

}

2、Queue队列方式发送点对点消息数据
 发送者
package com.mq.producer;

import javax.jms.DeliveryMode;
import javax.jms.MapMessage;
import javax.jms.Queue;
import javax.jms.QueueConnection;
import javax.jms.QueueConnectionFactory;
import javax.jms.QueueSession;
import javax.jms.Session;

import org.apache.activemq.ActiveMQConnection;
import org.apache.activemq.ActiveMQConnectionFactory;

public class QueueSender {
	// 发送次数
	public static final int SEND_NUM = 5;
	// tcp 地址
	public static final String BROKER_URL = "tcp://localhost:61616";
	// 目标,在ActiveMQ管理员控制台创建 http://localhost:8161/admin/queues.jsp
	public static final String DESTINATION = "activemq";

	/**
	 * 发送消息
	 *
	 * @param session
	 * @param sender
	 * @throws Exception
	 */
	public static void sendMessage(QueueSession session, javax.jms.QueueSender sender) throws Exception {
		for (int i = 0; i < SEND_NUM; i++) {
			String message = "发送消息第" + (i + 1) + "条";

			MapMessage map = session.createMapMessage();
			map.setString("text", message);
			map.setLong("time", System.currentTimeMillis());
			System.out.println(map);

			sender.send(map);
		}
	}

	/**
	 * Queue 发送信息核心方法
	 *
	 * @throws Exception
	 */
	public static void run() throws Exception {

		QueueConnection connection = null;
		QueueSession session = null;
		try {
			// 创建链接工厂
			QueueConnectionFactory factory = new ActiveMQConnectionFactory(ActiveMQConnection.DEFAULT_USER,
					ActiveMQConnection.DEFAULT_PASSWORD, BROKER_URL);
			// 通过工厂创建一个连接
			connection = factory.createQueueConnection();
			// 启动连接
			connection.start();
			// 创建一个session会话
			session = connection.createQueueSession(Boolean.TRUE, Session.AUTO_ACKNOWLEDGE);
			// 创建一个消息队列
			Queue queue = session.createQueue(DESTINATION);
			// 创建消息发送者
			javax.jms.QueueSender sender = session.createSender(queue);
			// 设置持久化模式
			sender.setDeliveryMode(DeliveryMode.NON_PERSISTENT);
			sendMessage(session, sender);
			// 提交会话
			session.commit();

		} catch (Exception e) {
			throw e;
		} finally {
			// 关闭释放资源
			if (session != null) {
				session.close();
			}
			if (connection != null) {
				connection.close();
			}
		}
	}
}
接收者
package com.mq.consumer;

import javax.jms.JMSException;
import javax.jms.MapMessage;
import javax.jms.Message;
import javax.jms.MessageListener;
import javax.jms.Queue;
import javax.jms.QueueConnection;
import javax.jms.QueueConnectionFactory;
import javax.jms.QueueSession;
import javax.jms.Session;

import org.apache.activemq.ActiveMQConnection;
import org.apache.activemq.ActiveMQConnectionFactory;

public class QueueReceiver {
	// tcp 地址
	public static final String BROKER_URL = "tcp://localhost:61616";
	// 目标,在ActiveMQ管理员控制台创建 http://localhost:8161/admin/queues.jsp
	public static final String TARGET = "activemq";

	/**
	 * @throws Exception
	 */
	public static void run() throws Exception {

		QueueConnection connection = null;
		QueueSession session = null;
		try {
			// 创建链接工厂
			QueueConnectionFactory factory = new ActiveMQConnectionFactory(ActiveMQConnection.DEFAULT_USER,
					ActiveMQConnection.DEFAULT_PASSWORD, BROKER_URL);
			// 通过工厂创建一个连接
			connection = factory.createQueueConnection();
			// 启动连接
			connection.start();
			// 创建一个session会话
			session = connection.createQueueSession(Boolean.TRUE, Session.AUTO_ACKNOWLEDGE);
			// 创建一个消息队列
			Queue queue = session.createQueue(TARGET);
			// 创建消息制作者
			javax.jms.QueueReceiver receiver = session.createReceiver(queue);

			receiver.setMessageListener(new MessageListener() {
				public void onMessage(Message msg) {
					if (msg != null) {
						MapMessage map = (MapMessage) msg;
						try {
							System.out.println(map.getLong("time") + "接收#" + map.getString("text"));
						} catch (JMSException e) {
							e.printStackTrace();
						}
					}
				}
			});
			// 休眠100ms再关闭
			Thread.sleep(1000 * 10);

			// 提交会话
			session.commit();

		} catch (Exception e) {
			throw e;
		} finally {
			// 关闭释放资源
			if (session != null) {
				session.close();
			}
			if (connection != null) {
				connection.close();
			}
		}
	}
}
Queue测试工具类
package com.mq.test;

import com.mq.consumer.QueueReceiver;
import com.mq.producer.QueueSender;

public class QueueTest {
	public static void main(String[] args){
		try {
			QueueSender.run();
			Thread.sleep(10*1000);
			QueueReceiver.run();
		} catch (Exception e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}

}

3、 Topic主题发布和订阅消息

发送者
package com.mq.producer;

import javax.jms.Connection;
import javax.jms.DeliveryMode;
import javax.jms.JMSException;
import javax.jms.MessageProducer;
import javax.jms.Session;
import javax.jms.TextMessage;
import javax.jms.Topic;
import org.apache.activemq.ActiveMQConnectionFactory;

public class TopicPublisher {
	 public static void main(String[] args) throws JMSException {
         ActiveMQConnectionFactory factory = new ActiveMQConnectionFactory("tcp://localhost:61616");
         Connection connection = factory.createConnection();
         connection.start();
         Session session = connection.createSession(false, Session.AUTO_ACKNOWLEDGE);
         Topic topic = session.createTopic("myTopic.messages");
         MessageProducer producer = session.createProducer(topic);
         producer.setDeliveryMode(DeliveryMode.NON_PERSISTENT);
         for(int i =0;i<10;i++){
             TextMessage message = session.createTextMessage();
             message.setText("message_" + System.currentTimeMillis());
             producer.send(message);
             System.out.println("Sent message: " + message.getText());
             try {
                 Thread.sleep(1000);
             } catch (InterruptedException e) {
                 e.printStackTrace();
             }
         }
//     session.close();
//     connection.stop();
//     connection.close();
    }

}
接收者
package com.mq.consumer;

import javax.jms.Connection;
import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageConsumer;
import javax.jms.MessageListener;
import javax.jms.Session;
import javax.jms.TextMessage;
import javax.jms.Topic;
import org.apache.activemq.ActiveMQConnectionFactory;

public class TopicSubscriber {
	 public static void main(String[] args) {
	        ActiveMQConnectionFactory factory = new ActiveMQConnectionFactory("tcp://localhost:61616");
	                try {
	                    Connection connection = factory.createConnection();
	                    connection.start();
	                    Session session = connection.createSession(false, Session.AUTO_ACKNOWLEDGE);
	                    Topic topic = session.createTopic("myTopic.messages");
	                    MessageConsumer consumer = session.createConsumer(topic);
	                    consumer.setMessageListener(new MessageListener() {
	                        public void onMessage(Message message) {
	                            TextMessage tm = (TextMessage) message;
	                            try {
	                                System.out.println("Received message: " + tm.getText());
	                            } catch (JMSException e) {
	                                e.printStackTrace();
	                            }
	                        }
	                    });
	                } catch (JMSException e) {
	                    e.printStackTrace();
	                }
	    }
}







声明

1.本站遵循行业规范,任何转载的稿件都会明确标注作者和来源;2.本站的原创文章,请转载时务必注明文章作者和来源,不尊重原创的行为我们将追究责任;3.作者投稿可能会经我们编辑修改或补充。

发表评论
搜索
KIKK导航

KIKK导航

排行榜
关注我们

一个IT知识分享的公众号
