Elasticsearch7 插件开发之索引创建、索引数据初始化

ElasticSearch es 插件开发

1. 插件分类

• API Extension Plugins API扩展插件
  通过添加新的API或功能向Elasticsearch添加新功能，通常与搜索或映射有关。
  优秀插件代表：
  SQL language Plugin: 让 Elasticsearch 支持 SQL语句查询 (by NLPchina)

• Alerting Plugins 告警插件
  监控Elasticsearch索引情况，并在超过某个阈值时触发告警。
  优秀插件代表：
  X-Pack

• Analysis Plugins 分析插件
  扩展索引的分析规则，比如各种分词插件
  优秀插件代表：
  IK Analysis Plugin 中文分词
  Japanese(Kuromoji) Analysis plugin 日文分词
  PinyinAnalysis Plugin 拼音分词

• Discovery Plugins 发现插件
  通过添加可用于代替Zen Discovery的新发现机制来扩展Elasticsearch 。

• Ingest Plugins 提取插件
  增强每个节点的功能。
  优秀插件代表：
  Ingest Attachment Processor Plugin 让每个节点都可以处理附件文件

• Management Plugins 管理插件
  管理Es集群
  优秀插件代表：X-Pack

• Mapper Plugins 映射插件
  主要用来扩展es数据类型

• Scripting Plugins 脚本插件
  主要用来扩展es的脚本功能，让es支持使用其他脚本语言。
  优秀插件代表：
  JavaScript Language
  Python Language

• Security Plugins 安全插件
  扩展es的安全策略，比如控制api的访问权限等
  优秀插件代表：X-Pack

• Snapshot/Restore Repository Plugins 快照/还原存储库插件
  扩展es的快照和恢复功能
• Store Plugins 存储插件
  扩展es的存储方式，es默认使用的是Lucene存储数据的
  优秀插件代表：
  Store SMB Windows SMB

2. 插件开发

一 . 建立插件描述文件
es插件描述文件名为 plugin-descriptor.properties 放在 src/main/resources/ 目录下，内容如下

属性	描述
name	插件名字
version	插件版本
description	插件功能描述
classname	插件入口class，完整路径
java.version	jdk 版本
elasticsearch.version	elasticsearch 版本

内容如下，这里都是引用项目的配置属性

description=${project.description}
version=${project.version}
name=${elasticsearch.plugin.name}
classname=${elasticsearch.plugin.classname}
java.version=${maven.compiler.target}
elasticsearch.version=${elasticsearch.version}

二. pom.xml 配置，已经打包配置

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>org.elasticsearch</groupId>
	<artifactId>elasticsearch-plug-index</artifactId>
	<version>0.0.1-SNAPSHOT</version>

	<properties>
		<elasticsearch.version>7.10.2</elasticsearch.version>
		<maven.compiler.target>1.8</maven.compiler.target>
		<elasticsearch.assembly.descriptor>${project.basedir}/src/main/assemblies/plugin.xml</elasticsearch.assembly.descriptor>
		<elasticsearch.plugin.name>index-plug</elasticsearch.plugin.name>
		<elasticsearch.plugin.classname>org.elasticsearch.plugin.IndexPlugin</elasticsearch.plugin.classname>
		<elasticsearch.plugin.jvm>true</elasticsearch.plugin.jvm>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.elasticsearch.client</groupId>
			<artifactId>transport</artifactId>
			<version>7.10.2</version>
			<exclusions>
				<exclusion>
					<groupId>org.elasticsearch</groupId>
					<artifactId>elasticsearch</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.elasticsearch.plugin</groupId>
			<artifactId>transport-netty4-client</artifactId>
			<version>7.10.2</version>
			<exclusions>
				<exclusion>
					<groupId>org.elasticsearch</groupId>
					<artifactId>elasticsearch</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.elasticsearch</groupId>
			<artifactId>elasticsearch</artifactId>
			<version>${elasticsearch.version}</version>
			<scope>compile</scope>
		</dependency>


		<dependency>
			<groupId>org.apache.httpcomponents</groupId>
			<artifactId>httpclient</artifactId>
			<version>4.5.2</version>
		</dependency>

		<dependency>
			<groupId>org.hamcrest</groupId>
			<artifactId>hamcrest-core</artifactId>
			<version>1.3</version>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupId>org.hamcrest</groupId>
			<artifactId>hamcrest-library</artifactId>
			<version>1.3</version>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>1.5.8</version>
		</dependency>

		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>2.6</version>
		</dependency>

		<!--mysql 驱动程序 -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>8.0.13</version>
		</dependency>
	</dependencies>

	<build>
		<resources>
			<resource>
				<directory>src/main/resources</directory>
				<filtering>false</filtering>
				<excludes>
					<exclude>*.properties</exclude>
				</excludes>
			</resource>
		</resources>
		<plugins>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-assembly-plugin</artifactId>
				<version>2.6</version>
				<configuration>
					<appendAssemblyId>false</appendAssemblyId>
					<outputDirectory>${project.build.directory}/releases/</outputDirectory>
					<descriptors>
						<descriptor>${basedir}/src/main/assembiles/plugin.xml</descriptor>
					</descriptors>
				</configuration>
				<executions>
					<execution>
						<phase>package</phase>
						<goals>
							<goal>single</goal>
						</goals>
					</execution>
				</executions>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.5.1</version>
				<configuration>
					<source>${maven.compiler.target}</source>
					<target>${maven.compiler.target}</target>
				</configuration>
			</plugin>
		</plugins>
	</build>
</project>

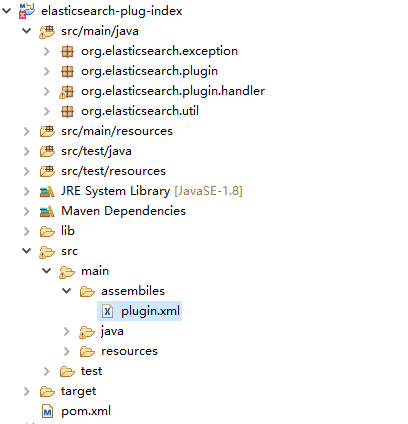

plugin.xml 里面配置zip的打包配置

<?xml version="1.0"?>
<assembly>
    <id>index-plugin</id>
    <formats>
        <format>zip</format>
    </formats>
    <includeBaseDirectory>false</includeBaseDirectory>
    <fileSets>
        <fileSet>
            <directory>${project.basedir}/config</directory>
            <outputDirectory>config</outputDirectory>
        </fileSet>
    </fileSets>

    <files>
        <file>
            <source>${project.basedir}/src/main/resources/plugin-descriptor.properties</source>
            <outputDirectory/>
            <filtered>true</filtered>
        </file>
         <file>
            <source>${project.basedir}/src/main/resources/application.properties</source>
            <outputDirectory>/config</outputDirectory>
            <filtered>true</filtered>
        </file>
         <file>
            <source>${project.basedir}/src/main/resources/archinfo.json</source>
             <outputDirectory>/config</outputDirectory>
            <filtered>true</filtered>
        </file>
         <file>
            <source>${project.basedir}/src/main/resources/engbaseinfo.json</source>
             <outputDirectory>/config</outputDirectory>
            <filtered>true</filtered>
        </file>
         <file>
            <source>${project.basedir}/src/main/resources/fileinfo.json</source>
            <outputDirectory>/config</outputDirectory>
            <filtered>true</filtered>
        </file>
         <file>
            <source>${project.basedir}/src/main/resources/giscertificate.json</source>
            <outputDirectory>/config</outputDirectory>
            <filtered>true</filtered>
        </file>
        <file>
            <source>${project.basedir}/src/main/resources/unitinfo.json</source>
            <outputDirectory>/config</outputDirectory>
            <filtered>true</filtered>
        </file>
        <file>
            <source>${project.basedir}/src/main/resources/unitinfo.sql</source>
            <outputDirectory>/config</outputDirectory>
            <filtered>true</filtered>
        </file>
         <file>
            <source>${project.basedir}/src/main/resources/giscertificate.sql</source>
            <outputDirectory>/config</outputDirectory>
            <filtered>true</filtered>
        </file>
         <file>
            <source>${project.basedir}/src/main/resources/engbaseinfo.sql</source>
            <outputDirectory>/config</outputDirectory>
            <filtered>true</filtered>
        </file>
         <file>
            <source>${project.basedir}/src/main/resources/archinfo.sql</source>
            <outputDirectory>/config</outputDirectory>
            <filtered>true</filtered>
        </file>
    </files>
    <dependencySets>
        <dependencySet>
            <outputDirectory/>
            <useProjectArtifact>true</useProjectArtifact>
            <useTransitiveFiltering>true</useTransitiveFiltering>
            <excludes>
                <exclude>org.elasticsearch:elasticsearch</exclude>
            </excludes>
        </dependencySet>
    </dependencySets>
</assembly>


三. 插件入口开发
插件入口需要继承Plugin类，然后实现相应的插件类型接口，去做相应的处理。我们这里实现ActionPlugin接口 实现一个api的插件类型，需要重写getRestHandlers方法，并将自己处理业务逻辑的handler类注册进去。

package org.elasticsearch.plugin;

import java.util.ArrayList;
import java.util.List;
import java.util.function.Supplier;
import org.elasticsearch.cluster.metadata.IndexNameExpressionResolver;
import org.elasticsearch.cluster.node.DiscoveryNodes;
import org.elasticsearch.common.settings.ClusterSettings;
import org.elasticsearch.common.settings.IndexScopedSettings;
import org.elasticsearch.common.settings.Settings;
import org.elasticsearch.common.settings.SettingsFilter;
import org.elasticsearch.plugin.handler.ArchInfoDataPluginHandler;
import org.elasticsearch.plugin.handler.EngBaseInfoDataPluginHandler;
import org.elasticsearch.plugin.handler.FileInfoDataPluginHandler;
import org.elasticsearch.plugin.handler.GisCertificateDataPluginHandler;
import org.elasticsearch.plugin.handler.IndexPluginHandler;
import org.elasticsearch.plugin.handler.UnitInfoDataPluginHandler;
import org.elasticsearch.plugins.ActionPlugin;
import org.elasticsearch.plugins.Plugin;
import org.elasticsearch.rest.RestController;
import org.elasticsearch.rest.RestHandler;

public class IndexPlugin extends Plugin implements ActionPlugin {
	private static String actionProfix = "index";

	public IndexPlugin() {
		super();
		System.out.println(actionProfix + "插件实例化......");
	}

	@Override
	public List<RestHandler> getRestHandlers(Settings settings, RestController restController,
			ClusterSettings clusterSettings, IndexScopedSettings indexScopedSettings, SettingsFilter settingsFilter,
			IndexNameExpressionResolver indexNameExpressionResolver, Supplier<DiscoveryNodes> nodesInCluster) {
		// TODO Auto-generated method stub
		List<RestHandler> list = new ArrayList<RestHandler>();

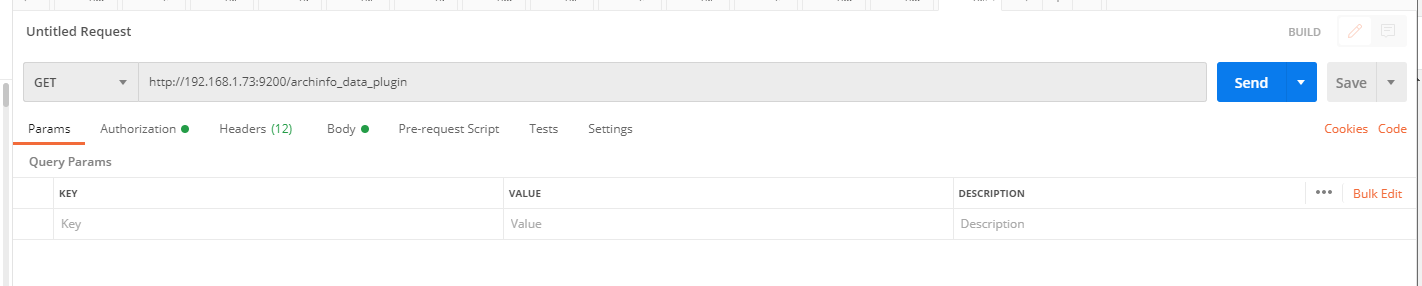

		// 导入指定索引的数据,数据源来自:MySQL8
		list.add(new ArchInfoDataPluginHandler());
		list.add(new UnitInfoDataPluginHandler());
		list.add(new GisCertificateDataPluginHandler());
		list.add(new EngBaseInfoDataPluginHandler());
		list.add(new FileInfoDataPluginHandler());
		// 索引初始化
		list.add(new IndexPluginHandler());
		return list;
	}




}

四. 插件处理Handler，处理具体业务逻辑

IndexPluginHandler: 处理索引(index)创建。

package org.elasticsearch.plugin.handler;

import static java.util.Arrays.asList;
import static java.util.Collections.unmodifiableList;
import static org.elasticsearch.rest.RestRequest.Method.GET;

import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.util.Arrays;
import java.util.List;

import org.apache.commons.io.Charsets;
import org.apache.commons.io.FileUtils;
import org.apache.commons.io.IOUtils;
import org.elasticsearch.action.admin.indices.create.CreateIndexRequest;
import org.elasticsearch.client.node.NodeClient;
import org.elasticsearch.common.xcontent.XContentBuilder;
import org.elasticsearch.common.xcontent.XContentType;
import org.elasticsearch.rest.BaseRestHandler;
import org.elasticsearch.rest.BytesRestResponse;
import org.elasticsearch.rest.RestRequest;
import org.elasticsearch.rest.RestStatus;
import org.elasticsearch.util.ApplicationPropertiesHolder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import io.netty.util.internal.StringUtil;

public class IndexPluginHandler extends BaseRestHandler {
	// 日志记录
	private Logger logger = LoggerFactory.getLogger(IndexPluginHandler.class);
	@Override
	public String getName() {
		// TODO Auto-generated method stub
		return "";
	}

	@Override
	public List<Route> routes() {
		// TODO Auto-generated method stub

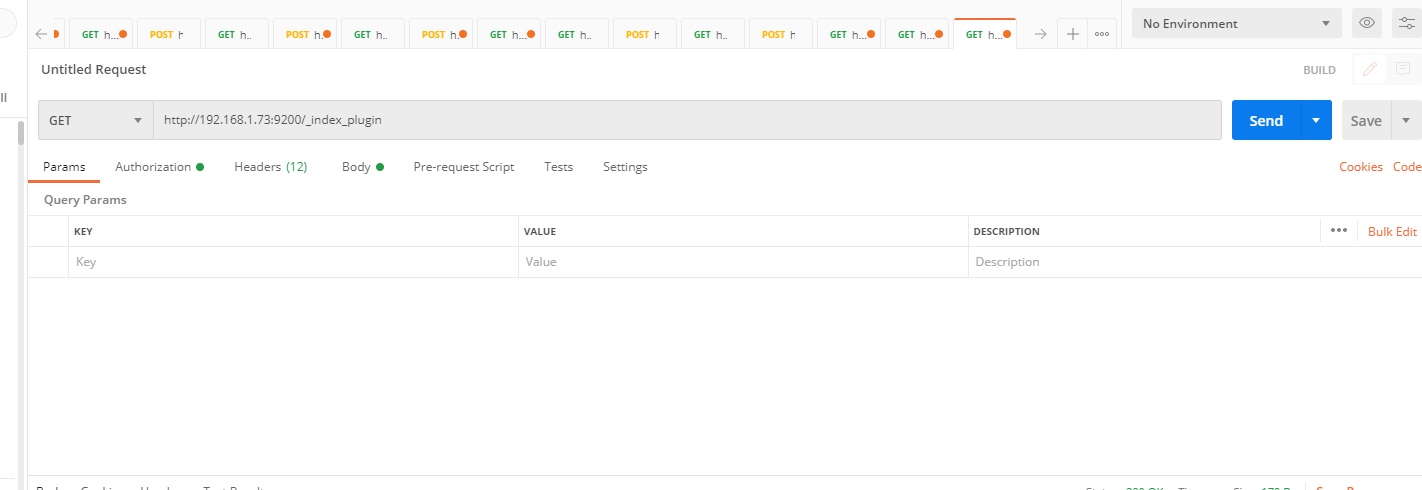

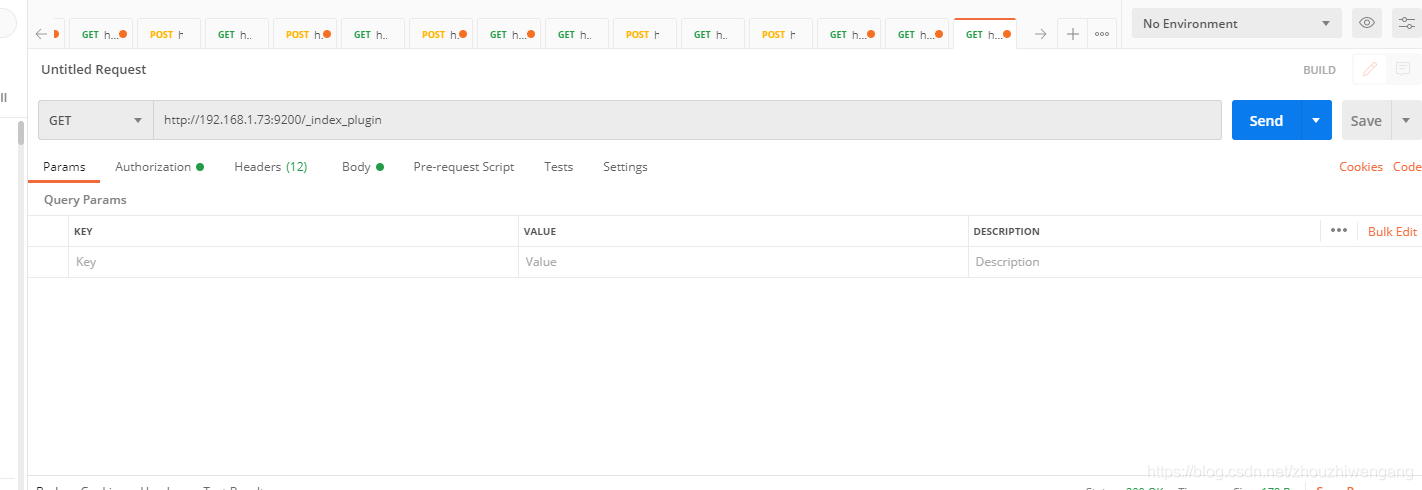

		return unmodifiableList(asList(new Route(GET, "/_index_plugin")));
	}

	public String readLocalFile(String name){
//		InputStream jsonInputStream = IndexPluginHandler.class
//                .getClassLoader().getResourceAsStream(name.concat(".json"));
		String dir =new File(IndexPluginHandler.class.getProtectionDomain().getCodeSource().getLocation().getPath()).getParent();
		System.out.println("---------dir2--------:" + dir);
		try {
			InputStream jsonInputStream = new FileInputStream(new File(dir+File.separator+"config"+File.separator+name.concat(".json")));;

			if(jsonInputStream  != null){
				return IOUtils.toString(jsonInputStream, Charsets.toCharset("utf-8"));
			}
		} catch (IOException e) {
			// TODO Auto-generated catch block
			logger.error("error: {}", e.getMessage(), e);
			e.printStackTrace();
		}

		return null;
	}

	@Override
	protected RestChannelConsumer prepareRequest(RestRequest request, NodeClient client) throws IOException {
		// TODO Auto-generated method stub
		// 读取配置文件
		ApplicationPropertiesHolder properties = new ApplicationPropertiesHolder();
		String indexs = properties.getProperty("indexs");

		if(!StringUtil.isNullOrEmpty(indexs)){
			Arrays.asList(indexs.split(",")).stream().forEach(item ->{
				String mapping = this.readLocalFile(item);
				System.out.println(mapping);
				if(!StringUtil.isNullOrEmpty(mapping)){
					// 创建索引请求, 并指定索引名称:item
					CreateIndexRequest index = new CreateIndexRequest(item);

					// 设置索引mapping
					index.source(mapping, XContentType.JSON);

					// 设置索引结果返回
					client.admin().indices().create(index).actionGet();
				}

			});
		}

		// 返回内容，这里返回消耗时间 请求参数 插件名称
		return channel -> {
			XContentBuilder builder = channel.newBuilder();
			builder.startObject();
			builder.field("message", "Index initialization succeeded");
			builder.endObject();
			channel.sendResponse(new BytesRestResponse(RestStatus.OK, builder));
		};
	}

}

ArchInfoDataPluginHandler:处理指定索引(index)，通过MySQL8 进行数据导入。

package org.elasticsearch.plugin.handler;

import static java.util.Arrays.asList;
import static java.util.Collections.unmodifiableList;
import static org.elasticsearch.rest.RestRequest.Method.GET;

import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.ResultSetMetaData;
import java.text.DateFormat;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.concurrent.TimeUnit;

import org.apache.commons.io.Charsets;
import org.apache.commons.io.IOUtils;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.elasticsearch.action.bulk.BackoffPolicy;
import org.elasticsearch.action.bulk.BulkProcessor;
import org.elasticsearch.action.bulk.BulkRequest;
import org.elasticsearch.action.bulk.BulkResponse;
import org.elasticsearch.action.index.IndexRequest;
import org.elasticsearch.client.node.NodeClient;
import org.elasticsearch.common.unit.ByteSizeUnit;
import org.elasticsearch.common.unit.ByteSizeValue;
import org.elasticsearch.common.unit.TimeValue;
import org.elasticsearch.common.xcontent.XContentBuilder;
import org.elasticsearch.rest.BaseRestHandler;
import org.elasticsearch.rest.BytesRestResponse;
import org.elasticsearch.rest.RestRequest;
import org.elasticsearch.rest.RestStatus;
import org.elasticsearch.util.ApplicationPropertiesHolder;
import org.elasticsearch.util.DBUtil;

import com.mysql.cj.util.StringUtils;

public class ArchInfoDataPluginHandler extends BaseRestHandler {
	 /** The logger. */
    private static Log logger = LogFactory.getLog(ArchInfoDataPluginHandler.class);

	@Override
	public String getName() {
		// TODO Auto-generated method stub
		return "archinfo";
	}

	@Override
	public List<Route> routes() {
		// TODO Auto-generated method stub
		return unmodifiableList(asList(new Route(GET, "/archinfo_data_plugin")));
	}

	public String readLocalSQL(String name){
//		InputStream jsonInputStream = IndexPluginHandler.class
//                .getClassLoader().getResourceAsStream(name.concat(".json"));
		String dir =new File(ArchInfoDataPluginHandler.class.getProtectionDomain().getCodeSource().getLocation().getPath()).getParent();
		System.out.println("---------dir2--------:" + dir);
		try {
			InputStream jsonInputStream = new FileInputStream(new File(dir + File.separator + "config" + File.separator + name.concat(".sql")));;

			if(jsonInputStream  != null){
				return IOUtils.toString(jsonInputStream, Charsets.toCharset("utf-8"));
			}
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}

		return null;
	}

	@Override
	protected RestChannelConsumer prepareRequest(RestRequest request, NodeClient client) throws IOException {
		// TODO Auto-generated method stub
		BulkProcessor bulkProcessor = getBulkProcessor(client);
		// 连接数据库,查询指定数据,索引数据入库
		Connection conn = null;
		PreparedStatement ps = null;
		ResultSet rs = null;

		try {
			conn = DBUtil.getConn(ApplicationPropertiesHolder.getProperty("elasticsearch.datasource.driver-class-name"),ApplicationPropertiesHolder.getProperty("elasticsearch.datasource.url"),ApplicationPropertiesHolder.getProperty("elasticsearch.datasource.username"),ApplicationPropertiesHolder.getProperty("elasticsearch.datasource.password"));

			String sql = this.readLocalSQL(ApplicationPropertiesHolder.getProperty("index.archinfo"));

			if(StringUtils.isNullOrEmpty(sql)){
				// 返回内容，这里返回消耗时间 请求参数 插件名称
				return channel -> {
					XContentBuilder builder = channel.newBuilder();
					builder.startObject();
					builder.field("message", "data initialization failed");
					builder.endObject();
					channel.sendResponse(new BytesRestResponse(RestStatus.INTERNAL_SERVER_ERROR, builder));
				};
			}
			ps = conn.prepareStatement(sql, ResultSet.TYPE_FORWARD_ONLY, ResultSet.CONCUR_READ_ONLY);
			ps.setFetchSize(Integer.MIN_VALUE);
			rs = ps.executeQuery();

			ResultSetMetaData colData = rs.getMetaData();

			ArrayList<HashMap<String, Object>> dataList = new ArrayList<HashMap<String, Object>>();

			HashMap<String, Object> map = null;
			int count = 0;
			String c = null;
			Object v = null;
			while (rs.next()) {
				count++;
				map = new HashMap<String, Object>(100);
				for (int i = 1; i <= colData.getColumnCount(); i++) {
					//c = colData.getColumnName(i);
					c = colData.getColumnLabel(i);
					v = rs.getObject(c);
					if(v instanceof java.sql.Timestamp){
						// 处理java.sql.Timestamp 与es 日期个数转换
						if(v != null){
							 DateFormat dateFormat = new SimpleDateFormat("yyyy-MM-dd");
							 String str = dateFormat.format(v);
							 map.put(c, str);
						}
					} else {
						map.put(c, v);
					}

				}
				dataList.add(map);
				// 每20万条写一次，不足的批次的最后再一并提交
				if (count % 200000 == 0) {
					logger.info("Mysql handle data number : " + count);
					// 写入ES
					for (HashMap<String, Object> hashMap2 : dataList) {
						bulkProcessor.add(new IndexRequest("archinfo").source(hashMap2));
					}
					// 每提交一次便将map与list清空
					map.clear();
					dataList.clear();
				}
			}

			// count % 200000 处理未提交的数据
			for (HashMap<String, Object> hashMap2 : dataList) {
				bulkProcessor.add(
						new IndexRequest("archinfo").source(hashMap2));
			}

			logger.info("-------------------------- Finally insert number total : " + count);
            // 将数据刷新到es, 注意这一步执行后并不会立即生效，取决于bulkProcessor设置的刷新时间
			bulkProcessor.flush();

		} catch (Exception e) {
			e.printStackTrace();
			logger.error(e.getMessage());
		} finally {
			try {
				rs.close();
				ps.close();
				conn.close();
				boolean terminatedFlag = bulkProcessor.awaitClose(150L, TimeUnit.SECONDS);
				client.close();
				logger.info(terminatedFlag);
			} catch (Exception e) {
				e.printStackTrace();
				logger.error(e.getMessage());
			}
		}

		// 返回内容，这里返回消耗时间 请求参数 插件名称
		return channel -> {
			XContentBuilder builder = channel.newBuilder();
			builder.startObject();
			builder.field("message", "data initialization succeeded");
			builder.endObject();
			channel.sendResponse(new BytesRestResponse(RestStatus.OK, builder));
		};
	}

	private static BulkProcessor getBulkProcessor(NodeClient client) {
		BulkProcessor bulkProcessor = null;
		try {

			BulkProcessor.Listener listener = new BulkProcessor.Listener() {
				@Override
				public void beforeBulk(long executionId, BulkRequest request) {
					logger.info("Try to insert data number : " + request.numberOfActions());
				}

				@Override
				public void afterBulk(long executionId, BulkRequest request, BulkResponse response) {
					logger.info("************** Success insert data number : " + request.numberOfActions() + " , id: "
							+ executionId);
				}

				@Override
				public void afterBulk(long executionId, BulkRequest request, Throwable failure) {
					logger.error("Bulk is unsuccess : " + failure + ", executionId: " + executionId);
				}

			};


			BulkProcessor.Builder builder = BulkProcessor.builder(client, listener);
			builder.setBulkActions(10000);
			builder.setBulkSize(new ByteSizeValue(300L, ByteSizeUnit.MB));
			builder.setConcurrentRequests(10);
			builder.setFlushInterval(TimeValue.timeValueSeconds(100L));
			builder.setBackoffPolicy(BackoffPolicy.constantBackoff(TimeValue.timeValueSeconds(1L), 3));
			// 注意点：在这里感觉有点坑，官网样例并没有这一步，而笔者因一时粗心也没注意，在调试时注意看才发现，上面对builder设置的属性没有生效
			bulkProcessor = builder.build();

		} catch (Exception e) {
			e.printStackTrace();
			try {
				bulkProcessor.awaitClose(100L, TimeUnit.SECONDS);
			} catch (Exception e1) {
				logger.error(e1.getMessage());
			}

		}
		return bulkProcessor;
	}

}

开发好后，执行maven打包，会在target目录生成相应的zip文件。这个就是我们需要的插件包，后面安装插件会用到。

1、将文件解压到elasticsearch7的plugins文件下:

2、启动elasticsearch7 服务

注意:截图红框是我们在IndexPlugin 构造函数添加如下代码:

	public IndexPlugin() {
		super();
		System.out.println(actionProfix + "插件实例化......");
	}

产生的效果，也预示这我编写的插件功能已经被elasticsearch7 加载。

使用postman 工具模拟向elasticsearch7 服务发送：索引初始化和索引数据导入功能。



以上请求地址来源于自定义Handler 配置:

IndexPluginHandler 指定访问地址:

	@Override
	public List<Route> routes() {
		// TODO Auto-generated method stub
		return unmodifiableList(asList(new Route(GET, "/_index_plugin")));
	}

ArchInfoDataPluginHandler 指定访问地址:

	@Override
	public List<Route> routes() {
		// TODO Auto-generated method stub
		return unmodifiableList(asList(new Route(GET, "/archinfo_data_plugin")));
	}
