springboot多模块开发

熊孩纸 阅读：628 2021-04-01 11:04:02 评论：0

1.创建parent项目名称multimodule
官网创建springboot项目
http://start.spring.io/
在这里插入图片描述
删除src 移除JRE System Library 和 Maven Dependencies
在这里插入图片描述

pom文件

	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.0.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>
	<groupId>cn.zk</groupId>
	<artifactId>multimodule</artifactId>
	<version>1.0</version>
	<!-- 配置打包方式 -->
	<packaging>pom</packaging>
	<name>multimodule</name>
	<description>This is multi-module springboot project!</description>
	<properties>
		<java.version>1.8</java.version>
	</properties>
	<!-- 定义开发运行时的环境变量：开发、测试、生产环境 -->
	<profiles>
		<profile>		<!-- 开发环境 -->
			<id>dev</id>
			<properties>
				<profiles.env>dev</profiles.env>
				<log4j.rootlevel>debug</log4j.rootlevel>
			</properties>
				<activation>
				<activeByDefault>true</activeByDefault>
			</activation>		<!-- Eclipse中运行时是否启用该节点 -->
		</profile>
		<profile>		<!-- 测试环境 -->
			<id>test</id>
			<properties>
				<profiles.env>test</profiles.env>
				<log4j.rootlevel>info</log4j.rootlevel>
			</properties>

		</profile>
		<profile>		<!-- 生产环境 -->
			<id>prod</id>
			<properties>
				<profiles.env>prod</profiles.env>
				<log4j.rootlevel>info</log4j.rootlevel>
			</properties>

		</profile>
	</profiles>

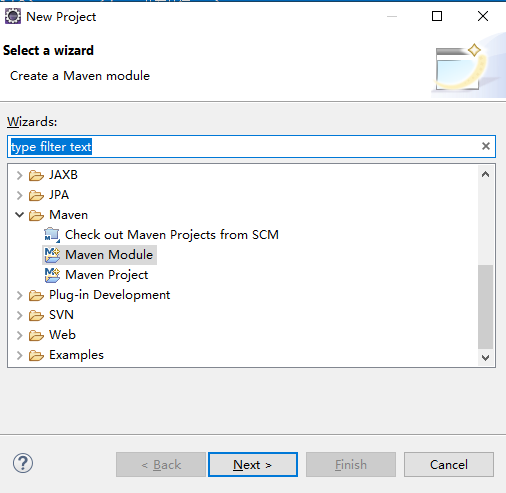

2.新建 new maven module project 名称dao
在这里插入图片描述

	<modelVersion>4.0.0</modelVersion>
	<artifactId>dao</artifactId>

	<!-- 父模块的基本信息 -->
	<parent>
		<groupId>cn.zk</groupId>
		<artifactId>multimodule</artifactId>
		<version>1.0</version>
	</parent>

	<!-- 子模块的基本信息 -->
	<groupId>cn.zk.multimodule</groupId>
	<!-- 配置打包方式 -->
	<packaging>jar</packaging>
	<name>dao</name>
	<description>This is multi-module springboot project!</description>


	<!-- 配置Java版本 -->
	<properties>
		<java.version>1.8</java.version>
	</properties>

	<!-- 添加相关依赖 -->
	<dependencies>
		<!-- 引入mybatis-plus-boot-starter -->
		<dependency>
			<groupId>com.baomidou</groupId>
			<artifactId>mybatis-plus-boot-starter</artifactId>
			<version>3.0.7</version>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.16.20</version>
		</dependency>
	</dependencies>
	<build>
		<finalName>${project.artifactId}</finalName>
		<resources>
			<resource>
				<directory>src/main/resources</directory>
				<includes>
					<include>*</include>
					<include>/static/**</include>
					<include>/mapper/**</include>
				</includes>
				<excludes>
					<exclude>generatorConfig.xml</exclude>
				</excludes>		<!-- 打包时不打入指定配置文件(同时影响开发运行时) -->
				<filtering>true</filtering>										<!-- 是否自动替换${xxx}的内容（涉及log4j2.xml） -->
			</resource>
			<resource>
				<directory>src/main/java</directory>
				<includes>
					<include>**/*.xml</include>
				</includes>
				<filtering>false</filtering>
			</resource>
			<resource>
				<directory>src/main/resources/${profiles.env}</directory>
				<includes>
					<include>*</include>
				</includes>
				<filtering>true</filtering>
			</resource>
		</resources>
	</build>

3.新建 new maven module project 名称service

<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>cn.zk</groupId>
		<artifactId>multimodule</artifactId>
		<version>1.0</version>
	</parent>
	<artifactId>service</artifactId>

	<!-- 子模块的基本信息 -->
	<groupId>cn.zk.multimodule</groupId>
	<!-- 配置打包方式 -->
	<packaging>jar</packaging>
	<name>service</name>
	<description>This is multi-module springboot project!</description>
	<!-- 配置Java版本 -->
	<properties>
		<java.version>1.8</java.version>
	</properties>
	<!-- 添加相关依赖 -->
	<dependencies>
		<!-- 引用dao模块 -->
		<dependency>
			<groupId>cn.zk.multimodule</groupId>
			<artifactId>dao</artifactId>
			<version>1.0</version>
		</dependency>
		<!-- commons-lang3 -->
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
		</dependency>
	</dependencies>

4.新建 new maven module project 名称controller

 <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>cn.zk</groupId>
    <artifactId>multimodule</artifactId>
    <version>1.0</version>
  </parent>
  <artifactId>controller</artifactId>

  <!-- 子模块的基本信息 -->
	<groupId>cn.zk.multimodule</groupId>
	<!-- 配置打包方式 -->
	<packaging>jar</packaging>
	<name>controller</name>
	<description>This is multi-module springboot project!</description>
	<dependencies>
		<!-- 引入service模块 -->
		<dependency>
			<groupId>cn.zk.multimodule</groupId>
			<artifactId>service</artifactId>
			<version>1.0</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
	</dependencies>

	<build>
		<finalName>${project.artifactId}</finalName>
		<resources>
			<resource>
				<directory>src/main/resources</directory>
				<includes>
					<include>*</include>
					<include>/static/**</include>
					<include>/mapper/**</include>
				</includes>
				<excludes>
					<exclude>generatorConfig.xml</exclude>
				</excludes>		<!-- 打包时不打入指定配置文件(同时影响开发运行时) -->
				<filtering>true</filtering>										<!-- 是否自动替换${xxx}的内容（涉及log4j2.xml） -->
			</resource>
			<resource>
				<directory>src/main/java</directory>
				<includes>
					<include>**/*.xml</include>
				</includes>
				<filtering>false</filtering>
			</resource>
			<resource>
				<directory>src/main/resources/${profiles.env}</directory>
				<includes>
					<include>*</include>
				</includes>
				<filtering>true</filtering>
			</resource>
		</resources>

		<plugins>
			<plugin>
				<groupId>org.mybatis.generator</groupId>
				<artifactId>mybatis-generator-maven-plugin</artifactId>
				<version>1.3.6</version>
				<configuration>
					<verbose>true</verbose>
					<overwrite>true</overwrite>
				</configuration>
			</plugin>

			<!-- 打包方法1：程序包和依赖包合并成一个包 -->
			<!-- <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId>
				<configuration> <layout>ZIP</layout> <executable>true</executable> </configuration>
				</plugin> -->

			<!-- 打包方法2：程序包和依赖包分开打包 -->
			<!-- plugin1=程序包，plugin2=依赖包 -->
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-jar-plugin</artifactId>
				<configuration>
					<archive>
						<manifest>
							<addClasspath>true</addClasspath>
							<classpathPrefix>lib/</classpathPrefix>			<!-- MANIFEST.MF 中 Class-Path 加入前缀 -->
							<useUniqueVersions>false</useUniqueVersions>	<!-- 防止在 MANIFEST.MF 中自动为引用的snapshot添加时间戳 -->
							<mainClass>cn.zk.multimodule.controller.ControllerApplication</mainClass>
						</manifest>
						<manifestEntries>
							<!-- <Class-Path>config/</Class-Path> -->	<!--MANIFEST.MF 中 Class-Path 加入资源文件目录 -->
						</manifestEntries>
					</archive>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-dependency-plugin</artifactId>
				<executions>
					<execution>
						<id>copy-dependencies</id>
						<phase>package</phase>
						<goals>
							<goal>copy-dependencies</goal>
						</goals>
						<configuration>
							<includeScope>runtime</includeScope>
							<overWriteReleases>false</overWriteReleases>
							<overWriteSnapshots>false</overWriteSnapshots>
							<overWriteIfNewer>true</overWriteIfNewer>
							<outputDirectory>${project.build.directory}/lib</outputDirectory>
						</configuration>
					</execution>
				</executions>
			</plugin>
		</plugins>
	</build>

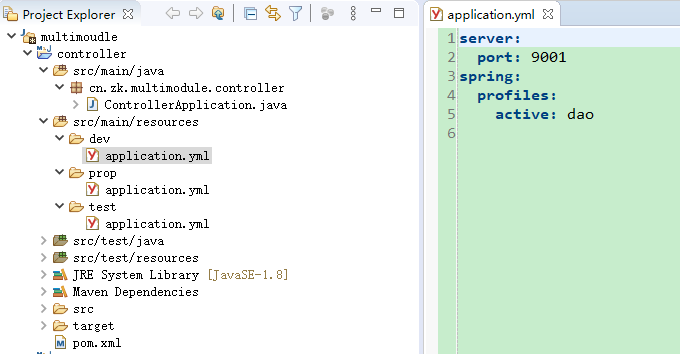

5.添加controller配置文件
在这里插入图片描述

server:
  port: 9001
spring:
  profiles:
    active: dao

6.添加controller启动类

@SpringBootApplication
@RestController
@MapperScan("cn.zk.multimodule.dao.moudle.dao")
public class ControllerApplication {
	public static void main(String[] args) {
		SpringApplication.run(ControllerApplication.class, args);
	}

	@Value("${key}")
	private String key;

	@RequestMapping("/")
	public String home() {
		return "i'm controller，欢迎光临!==" + key;

	}
}

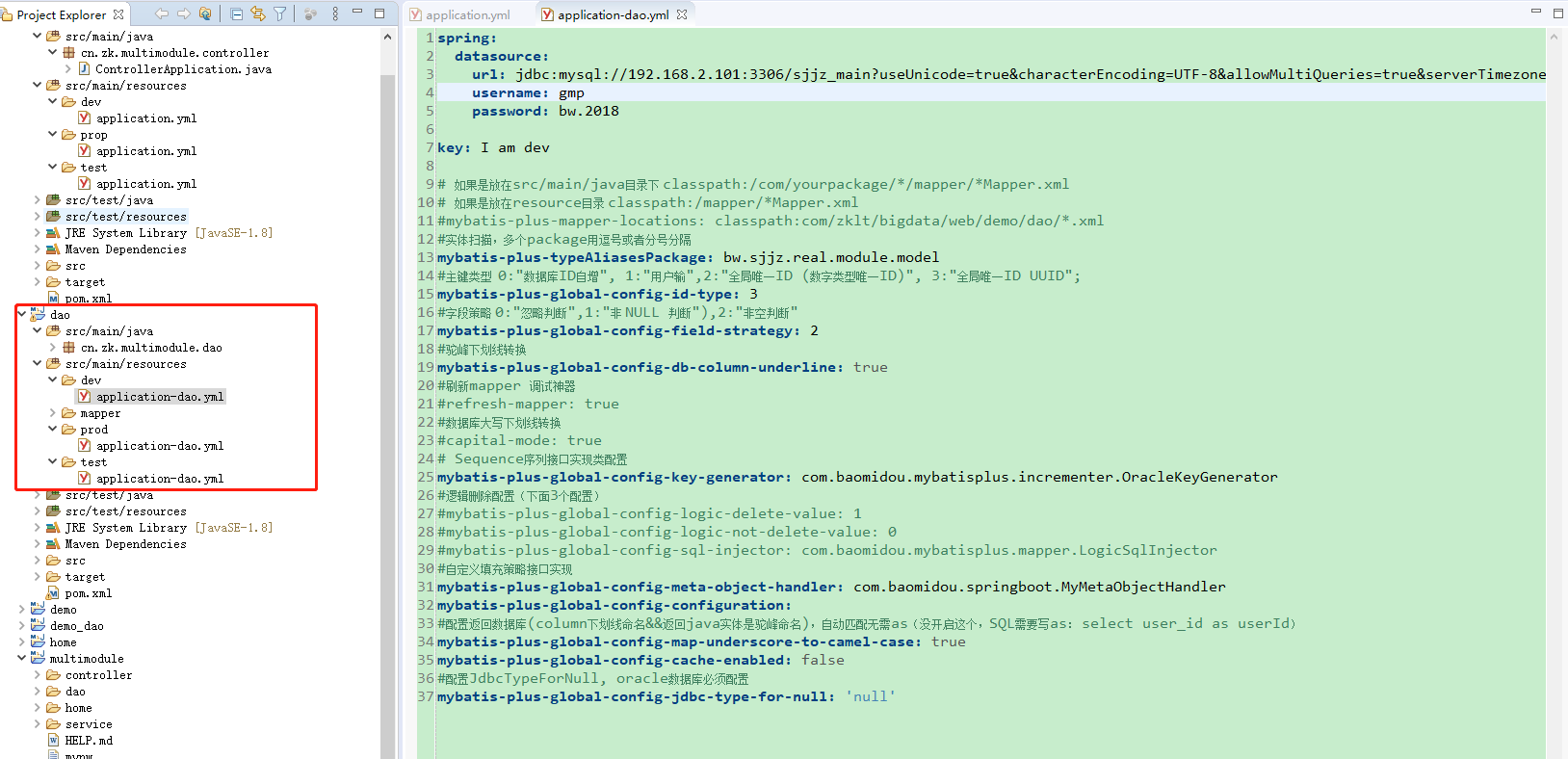

7.添加dao配置文件
在这里插入图片描述

spring:
  datasource:
    url: jdbc:mysql://192.168.2.101:3306/sjjz_main?useUnicode=true&characterEncoding=UTF-8&allowMultiQueries=true&serverTimezone=GMT%2B8
    username: gmp
    password: bw.2018

key: I am dev

# 如果是放在src/main/java目录下 classpath:/com/yourpackage/*/mapper/*Mapper.xml
# 如果是放在resource目录 classpath:/mapper/*Mapper.xml
#mybatis-plus-mapper-locations: classpath:com/zklt/bigdata/web/demo/dao/*.xml
#实体扫描，多个package用逗号或者分号分隔
mybatis-plus-typeAliasesPackage: bw.sjjz.real.module.model
#主键类型  0:"数据库ID自增", 1:"用户输",2:"全局唯一ID (数字类型唯一ID)", 3:"全局唯一ID UUID";
mybatis-plus-global-config-id-type: 3
#字段策略 0:"忽略判断",1:"非 NULL 判断"),2:"非空判断"
mybatis-plus-global-config-field-strategy: 2
#驼峰下划线转换
mybatis-plus-global-config-db-column-underline: true
#刷新mapper 调试神器
#refresh-mapper: true
#数据库大写下划线转换
#capital-mode: true
# Sequence序列接口实现类配置
mybatis-plus-global-config-key-generator: com.baomidou.mybatisplus.incrementer.OracleKeyGenerator
#逻辑删除配置（下面3个配置）
#mybatis-plus-global-config-logic-delete-value: 1
#mybatis-plus-global-config-logic-not-delete-value: 0
#mybatis-plus-global-config-sql-injector: com.baomidou.mybatisplus.mapper.LogicSqlInjector
#自定义填充策略接口实现
mybatis-plus-global-config-meta-object-handler: com.baomidou.springboot.MyMetaObjectHandler
mybatis-plus-global-config-configuration:
#配置返回数据库(column下划线命名&&返回java实体是驼峰命名)，自动匹配无需as（没开启这个，SQL需要写as： select user_id as userId）
mybatis-plus-global-config-map-underscore-to-camel-case: true
mybatis-plus-global-config-cache-enabled: false
#配置JdbcTypeForNull, oracle数据库必须配置
mybatis-plus-global-config-jdbc-type-for-null: 'null'

8.启动项目
在这里插入图片描述
